M-1024-4-A-A-E-B-A-K
ActiveQuantum Devices

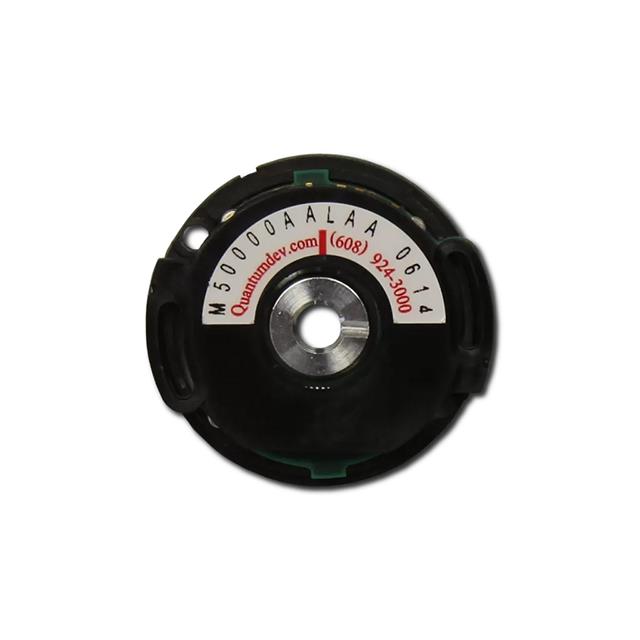

QM35 OPTICAL ROTARY ENCODER
Deep-Dive with AI
Search across all available documentation for this part.
M-1024-4-A-A-E-B-A-K
ActiveQuantum Devices
QM35 OPTICAL ROTARY ENCODER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M-1024-4-A-A-E-B-A-K |
|---|---|
| Actuator Type | 8 mm |
| Actuator Type | Open Center |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | User Selectable |
| Output Type | CCW, Commutation |
| Output Type | 4 Pole |
| Pulses per Revolution | 1024 |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 45.07 | |
Description
General part information
M-1024-4-A-A-E-B-A-K
Rotary Encoder Incremental 1024 Commutation, CCW, 4 Pole User Selectable
Documents
Technical documentation and resources
No documents available
