39220CEX022A22
ActiveElettrotek Kabel North America

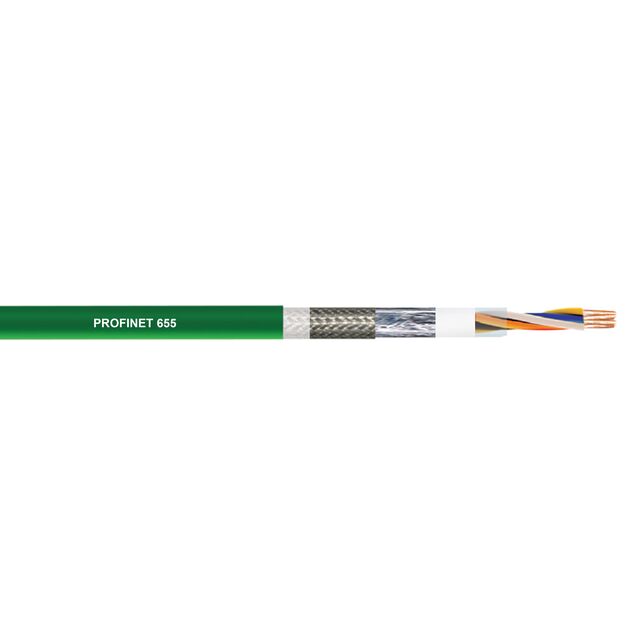

PROFINET CABLE 655 UL S/FTP CAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
39220CEX022A22
ActiveElettrotek Kabel North America
PROFINET CABLE 655 UL S/FTP CAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 39220CEX022A22 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.232 in |
| Jacket (Insulation) Diameter [diameter] | 5.89 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Green |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -5 °C |
| Ratings | UL Style 2571 |
| Shield Type | Foil, Braid |
| Usage | Industrial, Data |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1.29 | |
Description
General part information
39220CEX022A22
4 (2 Pair) Conductor Multi-Pair, Cat5e Cable Green 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
