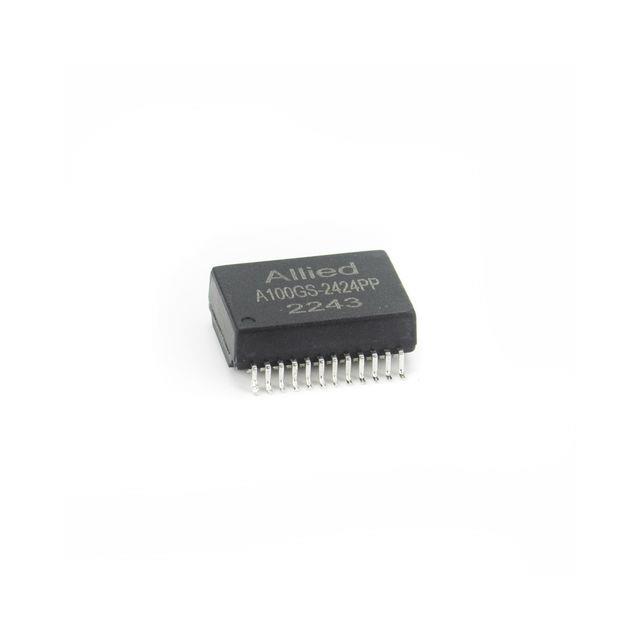

A10GS-2424PP
ActiveAllied Components International
10G BASE-T LAN FILTER MOD. POE++
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A10GS-2424PP
ActiveAllied Components International
10G BASE-T LAN FILTER MOD. POE++
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A10GS-2424PP |
|---|---|
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 120 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 0.715 in |
| Size / Dimension [x] | 18.16 mm |
| Size / Dimension [y] | 0.63 in |
| Size / Dimension [y] | 16.01 mm |
| Transformer Type | LAN 10G Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 4.85 | |
| 5 | $ 4.75 | |||
| 10 | $ 4.50 | |||
| 15 | $ 4.35 | |||
Description
General part information
A10GS-2424PP
120µH LAN 10G Base-T Pulse Transformer 1CT:1CT Surface Mount
