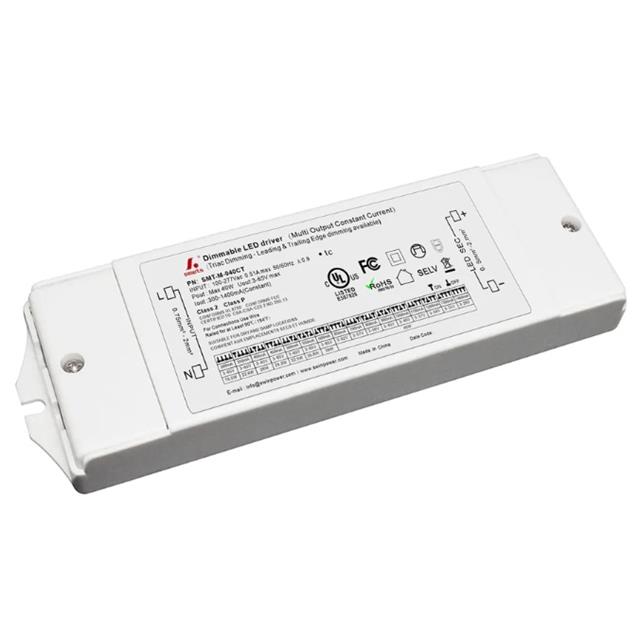

SMT-M-040CT
ActiveSmarts Electronic & Technology
CC AC/DC 3-65V PGM O/P 0.3-1.4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-M-040CT |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 1.4 A |
| Dimming | TRIAC |
| Efficiency | 80 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 40 W |
| Ratings | IP20 |
| Size / Dimension [x] | 157.4 mm |
| Size / Dimension [x] | 6.2 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 0.79 in |
| Size / Dimension [z] | 20 mm |
| Standard Number | UL 8750 |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 65 V |
| Voltage - Output [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.99 | |
| 5 | $ 35.04 | |||
| 10 | $ 33.09 | |||
| 25 | $ 31.64 | |||
| 50 | $ 30.18 | |||
| 100 | $ 29.20 | |||
| 250 | $ 26.77 | |||
Description
General part information
SMT-M-040CT
1.4A 3 ~ 65V Constant Current LED Driver AC DC Converter Topology 1 Output
