LS-00101
ActiveOSEPP Electronics LTD

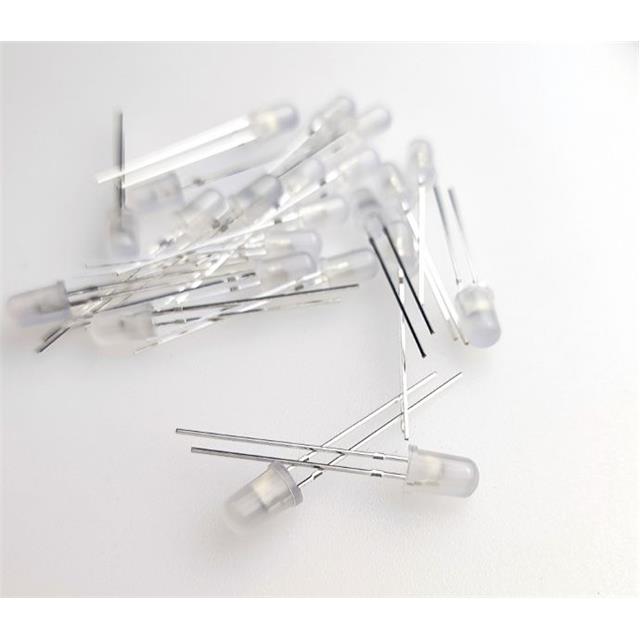

LED RGB DIFFUSED 5MM T/H 25PCS
Deep-Dive with AI
Search across all available documentation for this part.
LS-00101
ActiveOSEPP Electronics LTD
LED RGB DIFFUSED 5MM T/H 25PCS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS-00101 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Cathode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Features | Cycling (Slow) |
| Height (Max) [Max] [z] | 8.9 mm |
| Lens Color | Colorless |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 1000 mcd |
| Millicandela Rating [custom] | 1200 mcd |
| Millicandela Rating [custom] | 1500 mcd |
| Mounting Type | Through Hole |
| Size / Dimension [diameter] | 5 mm |
| Supplier Device Package | 5 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak [custom] | 515 nm |
| Wavelength - Peak [custom] | 460 nm |
| Wavelength - Peak [custom] | 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 16.95 | |
| 11 | $ 15.26 | |||
| 51 | $ 14.41 | |||
| 101 | $ 13.56 | |||
Description
General part information
LS-00101
Red, Green, Blue (RGB) LED Indication - Discrete 2.0V
Documents
Technical documentation and resources
No documents available
