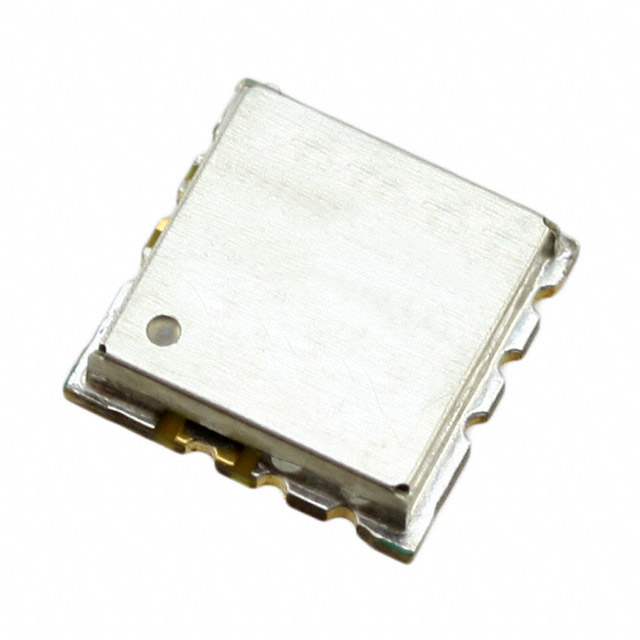

CVCO33CL-0559-0561
ActiveCrystek Corporation
VCO 560MHZ 0.5-4.5V 7.62X7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CVCO33CL-0559-0561
ActiveCrystek Corporation
VCO 560MHZ 0.5-4.5V 7.62X7.62MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CVCO33CL-0559-0561 |
|---|---|
| 2nd Harmonic, Typ (dBc) | -15 dBc |
| Frequency - Center | 560 MHz |
| Frequency Range [Max] | 561 MHz |
| Frequency Range [Min] | 559 MHz |
| Height [z] | 2 mm |
| Height [z] | 0.079 in |
| Icc Max [Max] | 15 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-QFN, Variant |
| Phase Noise Typ (dBc/Hz) | -95 dBc/Hz |
| Power (dBm) | 2 dBm |
| Pushing (MHz/V) | 1 MHz/V |
| Size / Dimension [x] | 7.62 mm |
| Size / Dimension [x] | 0.3 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.62 mm |
| Tuning Voltage (VDC) [Max] | 4.5 V |
| Tuning Voltage (VDC) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 5 | $ 17.57 | |
Description
General part information
CVCO33CL-0559-0561
560MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 2 ±2 dBm -15 2nd Harmonic Typ (dBc)
