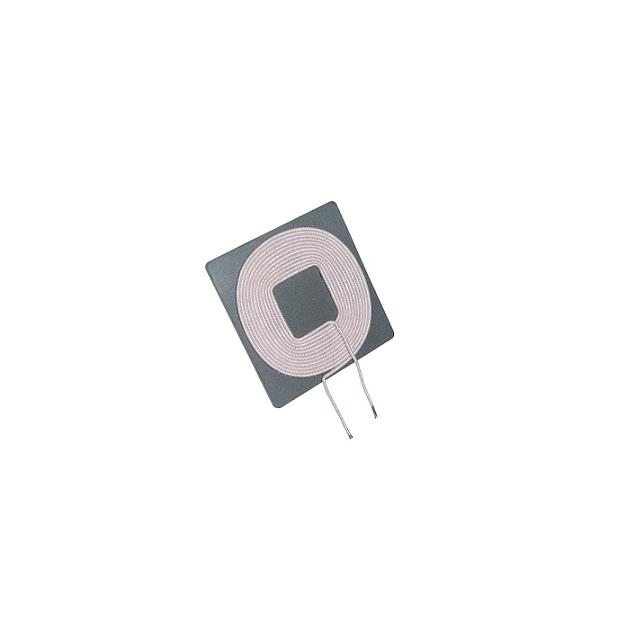

STX555504100KMPA2
ActiveSuperworld Electronics (S) Pte. Ltd.
TX 1 COIL 1 LAYER 10UH 6000MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STX555504100KMPA2
ActiveSuperworld Electronics (S) Pte. Ltd.
TX 1 COIL 1 LAYER 10UH 6000MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STX555504100KMPA2 |
|---|---|
| Current Rating (Amps) | 6 A |
| DC Resistance (DCR) [Max] | 80 mOhm |
| Function | Transmitter |
| Inductance | 10 µH |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 55 mm |
| Size / Dimension [x] | 2.17 " |
| Size / Dimension [y] | 2.17 in |
| Size / Dimension [y] | 55 mm |
| Size / Dimension [z] | 0.12 in |
| Size / Dimension [z] | 3 mm |
| Tolerance | 10 % |
| Type | 1 Layer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.06 | |
| 10 | $ 3.34 | |||
| 25 | $ 3.09 | |||
| 50 | $ 2.91 | |||
| 100 | $ 2.75 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.40 | |||
| 1000 | $ 2.26 | |||
| 2500 | $ 2.23 | |||
Description
General part information
STX555504100KMPA2
1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 80mOhm Max
