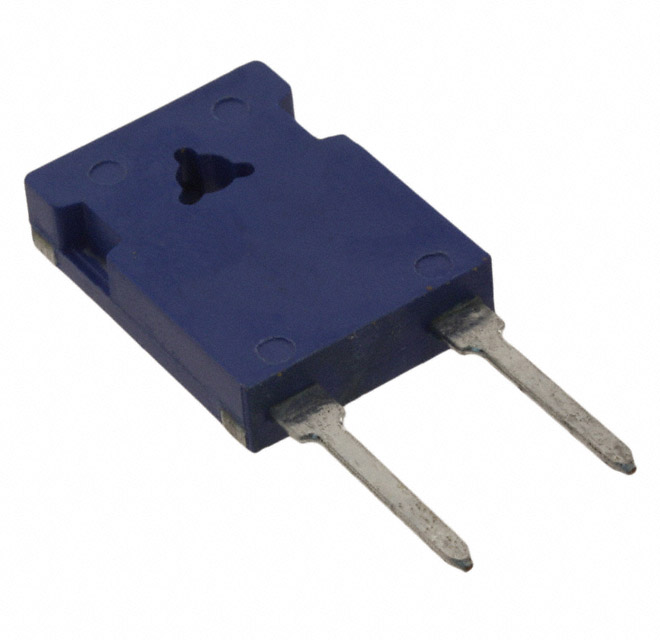

FPR2A-0R002F1
ActiveRiedon products by Bourns
RES 0.002 OHM 1% 30W TO218
Deep-Dive with AI
Search across all available documentation for this part.
FPR2A-0R002F1
ActiveRiedon products by Bourns
RES 0.002 OHM 1% 30W TO218
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FPR2A-0R002F1 |
|---|---|
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) [Max] | 24.1 mm |
| Height - Seated (Max) [Max] | 0.949 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-247-2 Variant |
| Power (Watts) | 30 W |
| Resistance | 2 mOhms |
| Size / Dimension [x] | 0.61 in |
| Size / Dimension [x] | 15.5 mm |
| Size / Dimension [y] | 4.6 mm |
| Size / Dimension [y] | 0.181 in |
| Supplier Device Package | TO-218 (TO-247) |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.18 | |
| 10 | $ 15.54 | |||
| 25 | $ 14.54 | |||
| 50 | $ 13.63 | |||
| 100 | $ 12.18 | |||
| 300 | $ 12.09 | |||
| 500 | $ 11.59 | |||
Description
General part information
FPR2A-0R002F1
2 mOhms ±1% 30W Through Hole Resistor TO-247-2 Variant Current Sense, Non-Inductive Metal Foil
