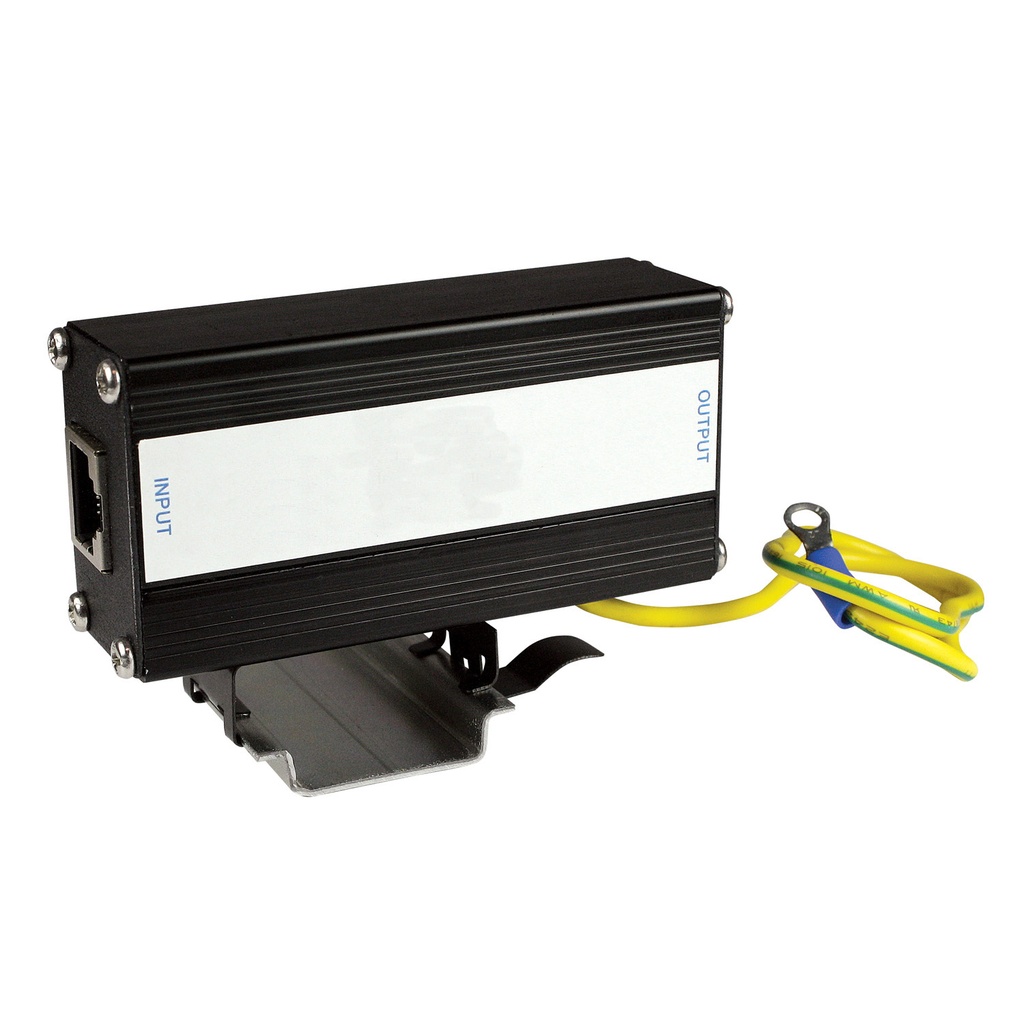

ASID-05-RJ45H-8-D
ActiveProsurge
ASID-05-RJ45H-8-D IS A DIN RAIL
Deep-Dive with AI
Search across all available documentation for this part.
ASID-05-RJ45H-8-D
ActiveProsurge
ASID-05-RJ45H-8-D IS A DIN RAIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASID-05-RJ45H-8-D |
|---|---|
| Current - Discharge (Max) (8/20µS) [Max] | 20 kA |
| Current - Discharge (Nom) (8/20µS) | 2.5 kA |
| Form | Base + Module |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Voltage - Continuous Operating (Max) (MCOV) | 6 VDC, 5 VAC |
| Voltage - Protection Level (VP) (2416) | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 56.91 | |
Description
General part information
ASID-05-RJ45H-8-D
ASID-05-RJ45H-8-D IS A DIN RAIL
Documents
Technical documentation and resources
No documents available
