Technical Specifications
Parameters and characteristics for this part
| Specification | SMA6J28AHE3-TP |
|---|---|
| Current - Peak Pulse (10/1000µs) | 13.2 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |

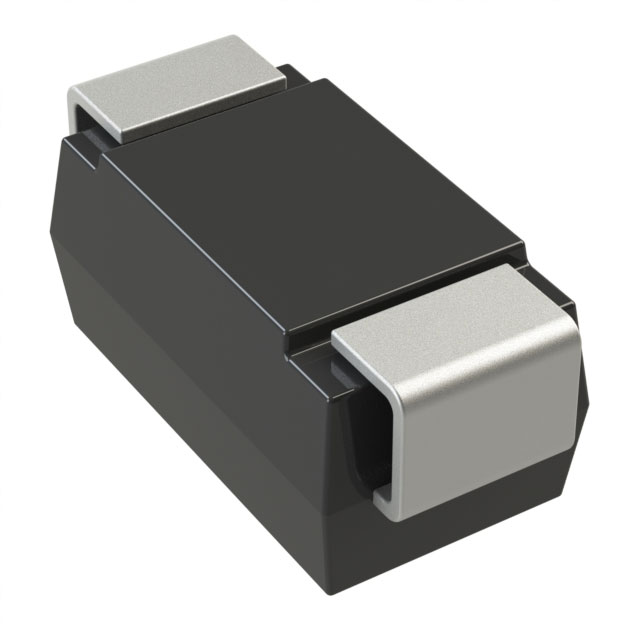

| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AC (SMA) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 31.1 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 45.4 V |
| Voltage - Reverse Standoff (Typ) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 0.18 | |
Description
General part information
SMA6J28AHE3-TP
45.4V Clamp 13.2A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
