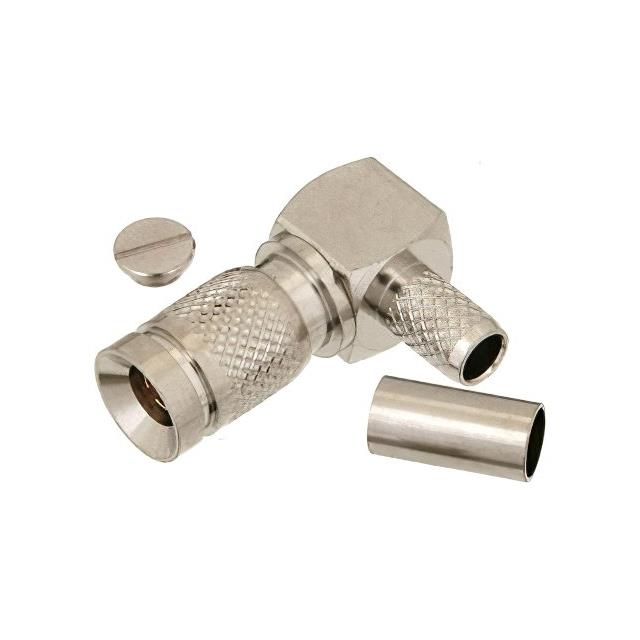

PE44247
ActivePasternack
1.0/2.3 PLUG RIGHT ANGLE CONNECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE44247
ActivePasternack
1.0/2.3 PLUG RIGHT ANGLE CONNECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44247 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-55 |
| Cable Group | 223, 142, 400 |
| Center Contact Plating | Gold |
| Connector Style | 1.0/2.3 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 18.79 | |
| 25 | $ 17.85 | |||
| 50 | $ 16.91 | |||
| 100 | $ 16.16 | |||
Description
General part information
PE44247
1.0/2.3 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
