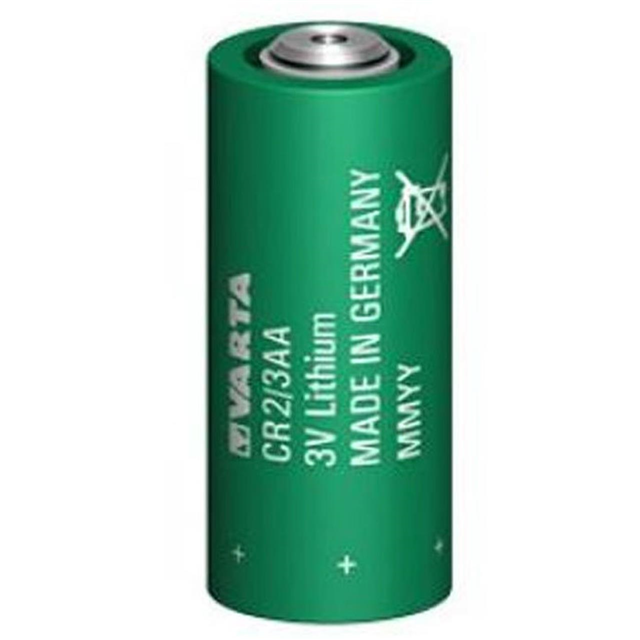

CR2/3AA
ActiveVARTA
BATTERY LITHIUM 3V 2/3 AA
Deep-Dive with AI
Search across all available documentation for this part.
CR2/3AA
ActiveVARTA
BATTERY LITHIUM 3V 2/3 AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CR2/3AA |
|---|---|
| Battery Cell Size | 2/3AA |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 1.35 Ah |
| Discharge Rate | 10 mA |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.58 " |
| Size / Dimension [diameter] | 14.8 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Storage/Refrigeration Temperature [Max] | 70 °C |
| Storage/Refrigeration Temperature [Min] | -55 °C |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 13.95 | |
| 20 | $ 10.95 | |||
| 50 | $ 8.95 | |||
Description
General part information
CR2/3AA
2/3AA Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
No documents available
