54-00352
ActiveTensility International Corp

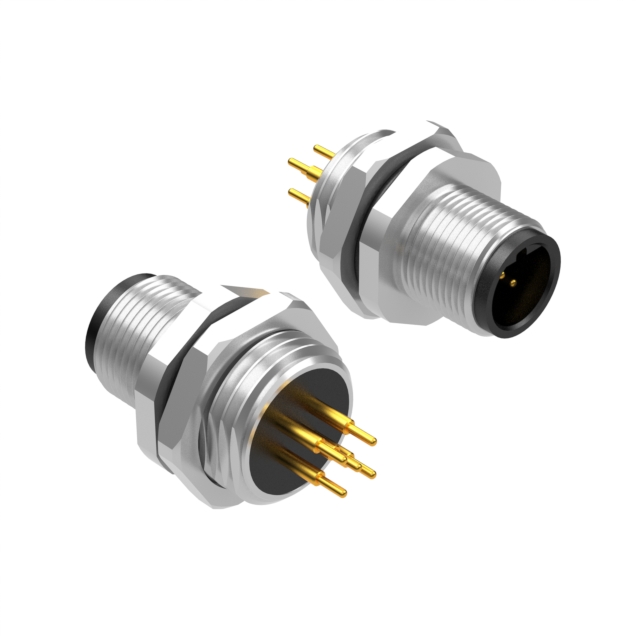

M12 B-CODE 5POS PLUG PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
54-00352
ActiveTensility International Corp
M12 B-CODE 5POS PLUG PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-00352 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.14 | |
| 10 | $ 5.57 | |||
| 25 | $ 5.28 | |||
| 40 | $ 5.15 | |||
| 80 | $ 4.91 | |||
| 230 | $ 4.30 | |||
| 440 | $ 4.17 | |||
| 945 | $ 3.56 | |||
| 2400 | $ 3.31 | |||
Description
General part information
54-00352
5 Position Circular Connector Plug, Male Pins Solder
Documents
Technical documentation and resources
No documents available
