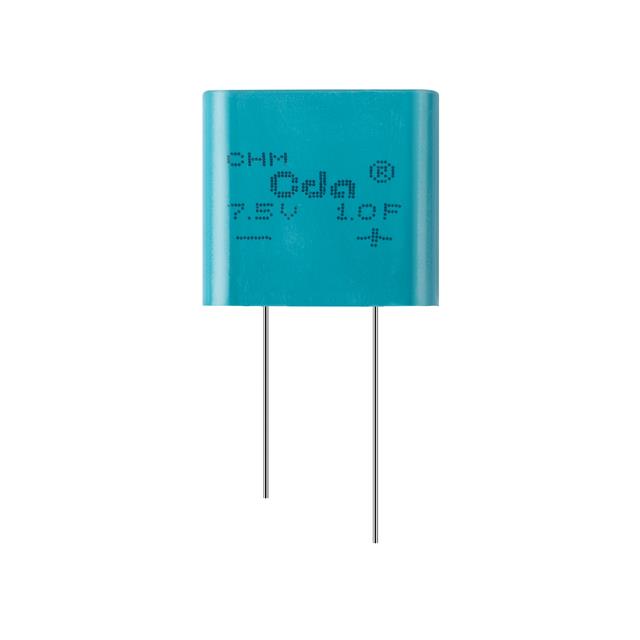

CHM-7R5L105R-TW
ActiveZhi Feng Wei Technology
7.5V 1.0F 26*9*24 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHM-7R5L105R-TW
ActiveZhi Feng Wei Technology
7.5V 1.0F 26*9*24 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHM-7R5L105R-TW |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 285 mOhm |
| Height - Seated (Max) [Max] | 25.5 mm |
| Height - Seated (Max) [Max] | 1.004 in |
| Lead Spacing | 0.453 in |
| Lead Spacing | 11.5 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 1.024 in |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [y] | 9 mm |
| Termination | PC Pins |
| Voltage - Rated | 7.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.12 | |
| 10 | $ 4.90 | |||
| 50 | $ 4.00 | |||
| 100 | $ 3.72 | |||
| 500 | $ 3.24 | |||
| 1000 | $ 3.09 | |||
| 2500 | $ 2.93 | |||
Description
General part information
CHM-7R5L105R-TW
1 F (EDLC) Supercapacitor 7.5 V Radial 285mOhm @ 1kHz 1000 Hrs @ 65°C
