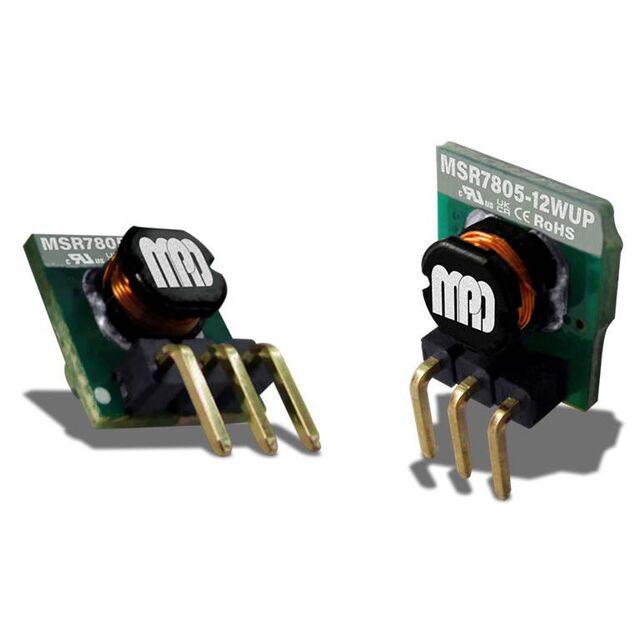

MSR7805-033WUP
ActiveMicroPower Direct
DC-DC 3.3VOUT 500MA SIP POL 3 TE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSR7805-033WUP
ActiveMicroPower Direct
DC-DC 3.3VOUT 500MA SIP POL 3 TE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSR7805-033WUP |
|---|---|
| Applications | Industrial |
| Approval Agency | CE, UKCA, UL |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 86 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.39 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 7.2 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [z] | 0.43 " |
| Size / Dimension [z] | 11 mm |
| Standard Number | 60950-1 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MSR7805-033WUP
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 500mA 4.75V - 36V Input
Documents
Technical documentation and resources
