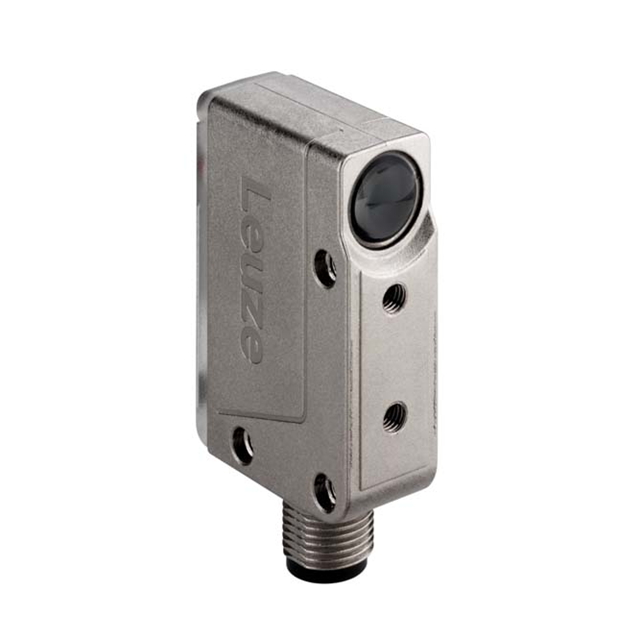

PRK18B.T2/PX-M12
ActiveLeuze
POLARIZED RETRO SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRK18B.T2/PX-M12
ActiveLeuze
POLARIZED RETRO SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRK18B.T2/PX-M12 |
|---|---|
| Adjustment Type | 11-Turn Potentiometer, Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP - Dark-ON |
| Response Time | 333 µs |
| Sensing Distance [Max] | 4.8 m |
| Sensing Distance [Max] | 188.976 " |
| Sensing Distance [Min] | 0 mm |
| Sensing Distance [Min] | 0 " |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 306.90 | |
Description
General part information
PRK18B.T2/PX-M12
Retroreflective Optical Sensor 0" ~ 188.976" (0mm ~ 4.8m) PNP - Dark-ON
