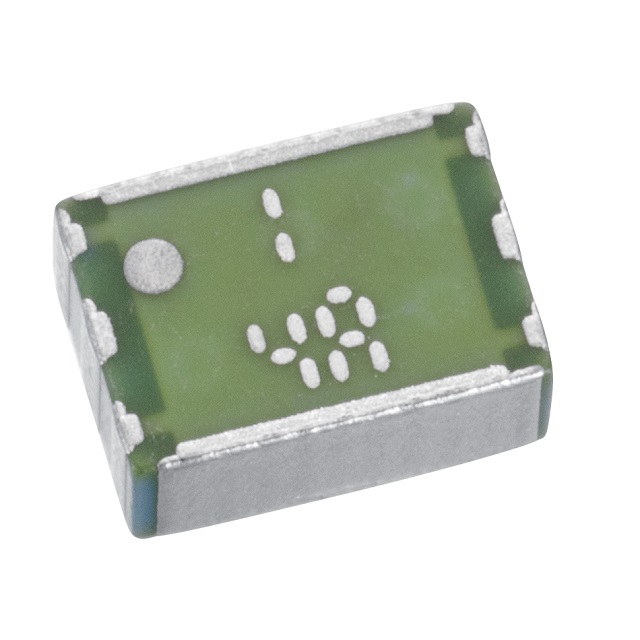

HMD0148L
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC BAND PASS FILTER, 5150MHZ -
Deep-Dive with AI
Search across all available documentation for this part.
HMD0148L
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC BAND PASS FILTER, 5150MHZ -
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMD0148L |
|---|---|
| Bandwidth | 685 MHz |
| Filter Type | Band Pass |
| Frequency | 5.493 GHz |
| Height (Max) [Max] | 0.071 in |
| Height (Max) [Max] | 1.8 mm |
| Insertion Loss | 2.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Package / Case | 8 Leads |
| Ripple | 1.35 dB |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.23 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.43 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.15 | |||
| 250 | $ 1.98 | |||
| Digi-Reel® | 1 | $ 3.23 | ||
| 10 | $ 2.63 | |||
| 25 | $ 2.43 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.15 | |||
| 250 | $ 1.98 | |||
| Tape & Reel (TR) | 500 | $ 1.86 | ||
| 1000 | $ 1.75 | |||
| 1500 | $ 1.69 | |||
| 2500 | $ 1.62 | |||
| 3500 | $ 1.57 | |||
Description
General part information
HMD0148L
5.493GHz Center Frequency Band Pass RF Filter (Radio Frequency) 685MHz Bandwidth 2.5dB 1812 (4532 Metric), 8 PC Pad
