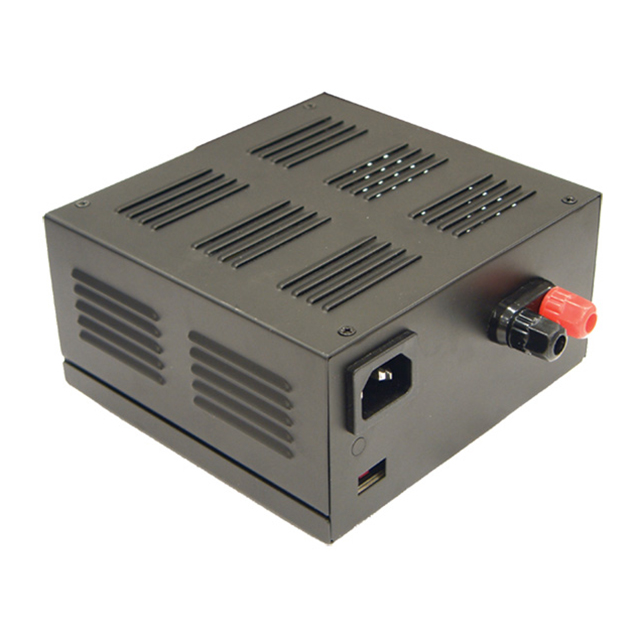

ESP-120-13.5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 13.5V 108W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP-120-13.5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 13.5V 108W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP-120-13.5 |
|---|---|
| Applications | ITE (Commercial), Laboratory |
| Approval Agency | cCSAus, CE |
| Current - Output 1 | 8 A |
| Efficiency | 81 % |
| Features | Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 108 W |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [y] | 140 mm |
| Size / Dimension [y] | 5.51 " |
| Size / Dimension [z] | 75 mm |
| Size / Dimension [z] | 2.95 " |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 132 VAC, 370 VDC |
| Voltage - Input [Min] | 176 VAC, 88 VAC, 249 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ESP-120-13.5
Enclosed AC DC Converters 1 Output 13.5V 88 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC Input
