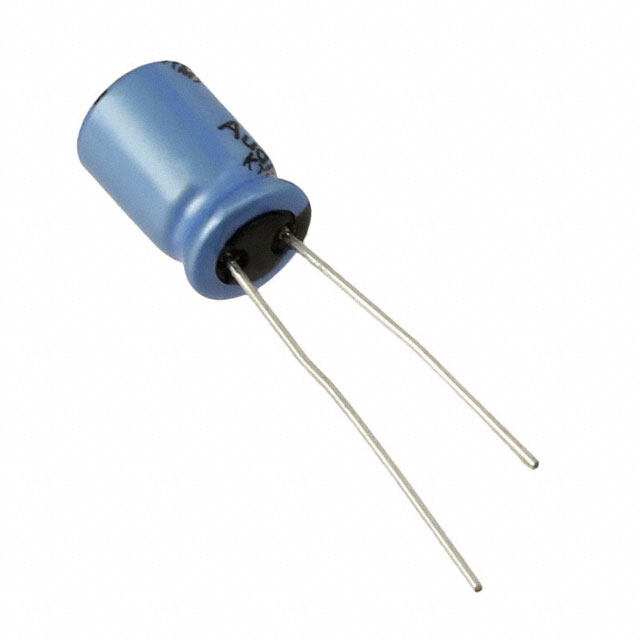

UKT1A331MPD1TA
NICHICON
CAP ALUMINUM LYTIC 330UF 10V 20% (8 X 11.5MM) RADIAL 5MM 0.24A 1000H 105°C AMMO AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
UKT1A331MPD1TA
NICHICON
CAP ALUMINUM LYTIC 330UF 10V 20% (8 X 11.5MM) RADIAL 5MM 0.24A 1000H 105°C AMMO AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UKT1A331MPD1TA |
|---|---|
| Applications | Audio |
| Capacitance | 330 µF |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 360 mA |
| Ripple Current @ Low Frequency | 240 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UKT1A331MPD1TA
330 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
