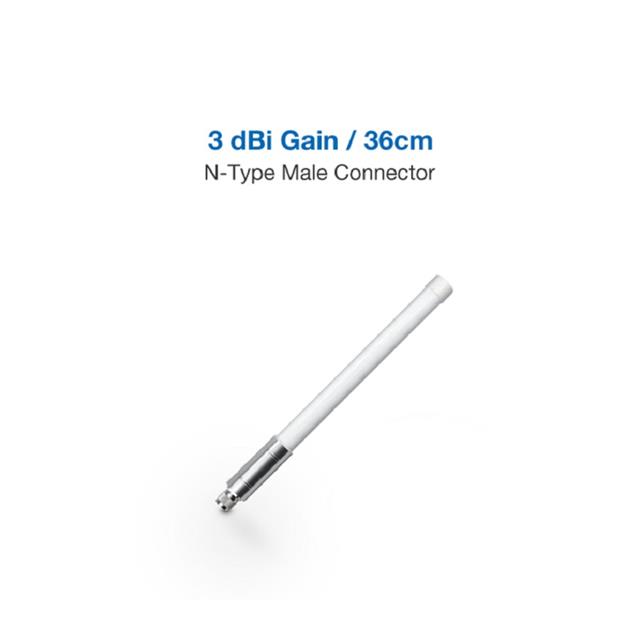

RAK3DBI
ActiveRAKwireless
3DBI FIBERGLASS ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
RAK3DBI
ActiveRAKwireless
3DBI FIBERGLASS ANTENNA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RAK3DBI |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LoRa |
| Frequency (Center/Band) | 895 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 930 MHz |
| Frequency Range [Min] | 860 MHz |
| Gain | 3 dBi |
| Height (Max) [Max] [z] | 360 mm |
| Height (Max) [Max] [z] | 14.173 in |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | N Type Male |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.00 | |
Description
General part information
RAK3DBI
RF ANTENNA LoRa Whip, Straight N Type Male Bracket Mount
Documents
Technical documentation and resources
No documents available
