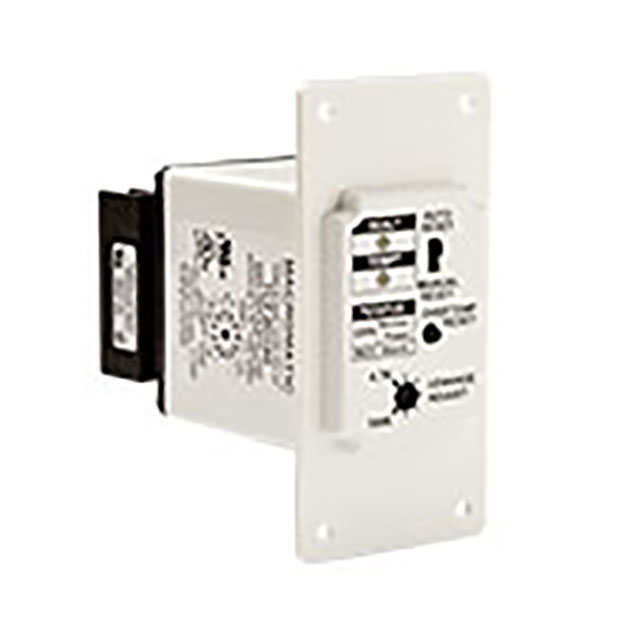

TCF2D250
ActiveMacromatic Industrial Controls
TEMP/SEAL LEAK RELAY
Deep-Dive with AI
Search across all available documentation for this part.
TCF2D250
ActiveMacromatic Industrial Controls
TEMP/SEAL LEAK RELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCF2D250 |
|---|---|
| Circuit | SPST-NO (1 Form A), SPDT (1 Form C) |
| Contact Rating @ Voltage | 28 VDC, 240 VAC, 7 A |
| Delay Time | 1 Sec |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -18.4 °F |
| Trip Range [Max] | 250 kOhm |
| Trip Range [Min] | 1 kOhm |
| Type | Temperature Monitoring, Seal Leakage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 263.12 | |
Description
General part information
TCF2D250
Temperature Monitoring, Seal Leakage 120VAC
