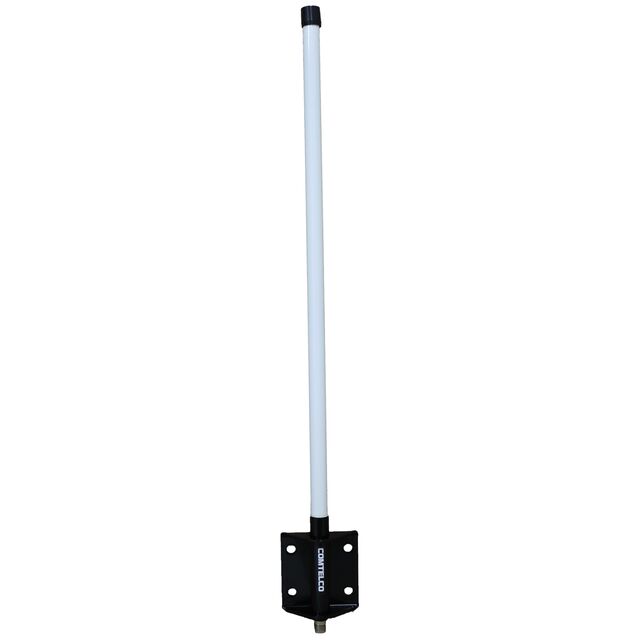

BS800S-E
ActiveMobile Mark Antenna Solutions
HI-PWR 900MHZ BASE STATION ANTEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BS800S-E
ActiveMobile Mark Antenna Solutions
HI-PWR 900MHZ BASE STATION ANTEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BS800S-E |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | General Purpose |
| Frequency (Center/Band) | 930 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 970 MHz |
| Frequency Range [Min] | 890 MHz |
| Gain | 4 dBi |
| Height (Max) | 685.8 mm |
| Height (Max) [Max] | 27 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | General ISM |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.35 | |
Description
General part information
BS800S-E
RF ANTENNA General Purpose Whip, Straight TNC Female Mast Mount
