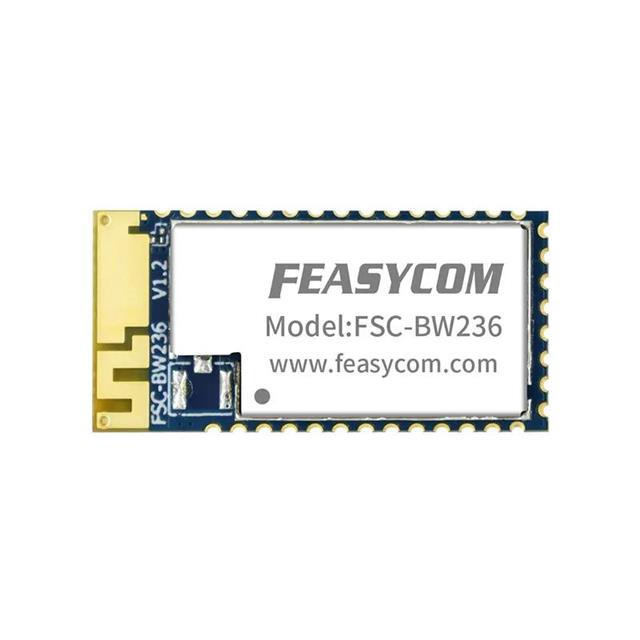

FSC-BW236
ActiveShenzhen Feasycom Co., LTD
RF TXRX MOD BT WIFI CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSC-BW236
ActiveShenzhen Feasycom Co., LTD
RF TXRX MOD BT WIFI CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSC-BW236 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 150 Mbps |
| Frequency | 5 GHz, 2.4 GHz |
| Memory Size | 4 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 52-SMD Module |
| Power - Output | 17.5 dBm |
| Protocol | Bluetooth v5.0, 802.11a/b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -85 dBm |
| Serial Interfaces | GPIO, PWM, UART, I2C, SPI, USB, AIO, PIO |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.27 | |
Description
General part information
FSC-BW236
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Integrated, Chip Surface Mount
