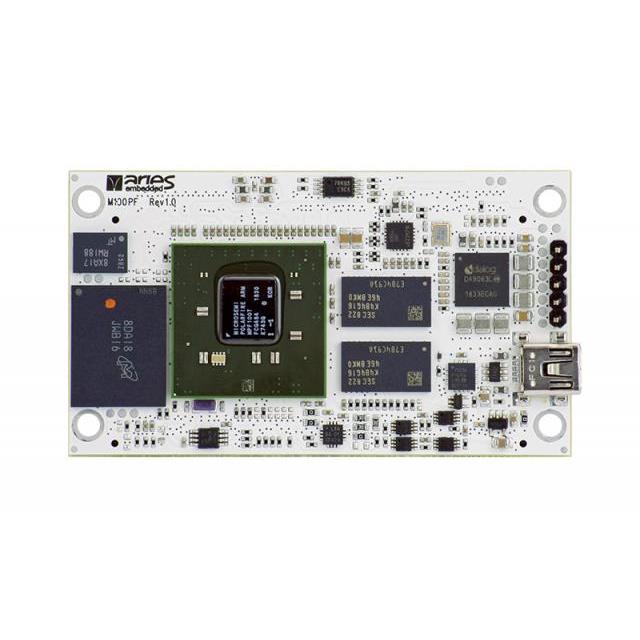

M100PF-3AC
ActiveARIES Embedded
SOM POLARFIRE FPGA MPF300T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M100PF-3AC
ActiveARIES Embedded
SOM POLARFIRE FPGA MPF300T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M100PF-3AC |
|---|---|
| Connector Type | 360 Pin |
| Core Processor | MPF300T |
| Flash Size | 4 GB |
| Module/Board Type | FPGA |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Size | 1 GB |
| Size / Dimension [x] | 74 mm |
| Size / Dimension [x] | 2.91 " |
| Size / Dimension [y] | 42 mm |
| Size / Dimension [y] | 1.65 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 823.00 | |
| 10 | $ 800.45 | |||
| 25 | $ 778.82 | |||
| 50 | $ 758.32 | |||
| 100 | $ 738.88 | |||
Description
General part information
M100PF-3AC
PolarFire™ Embedded Module MPF300T 1GB 4GB eMMC
