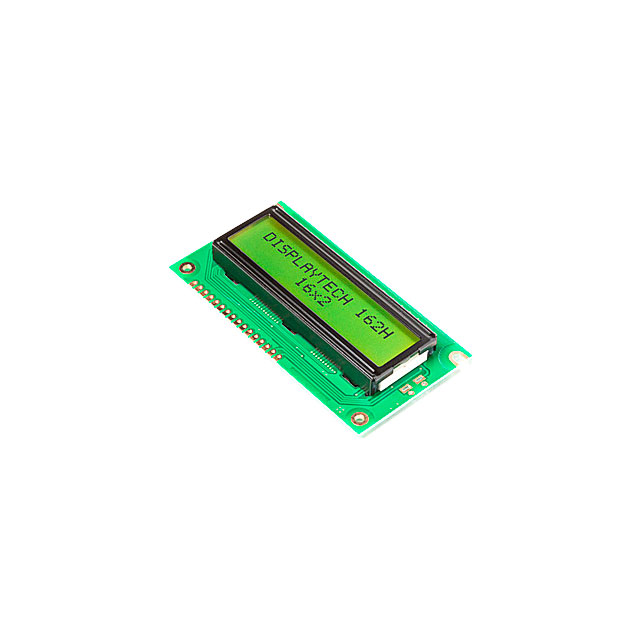

162H BC BW
ActiveDisplaytech
CHARACTER MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
162H BC BW
ActiveDisplaytech
CHARACTER MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 162H BC BW |
|---|---|
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 2.95 mm |
| Character Size [z] | 5.55 mm |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.65 mm |
| Number of Characters | 16 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 84 mm |
| Outline L x W x H [y] | 44 mm |
| Outline L x W x H [z] | 13.2 mm |
| Viewing Area [x] | 66 mm |
| Viewing Area [y] | 16 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.54 | |
| 10 | $ 14.65 | |||
| 100 | $ 12.39 | |||
| 500 | $ 11.41 | |||
Description
General part information
162H BC BW
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green 84.00mm x 44.00mm x 13.20mm
