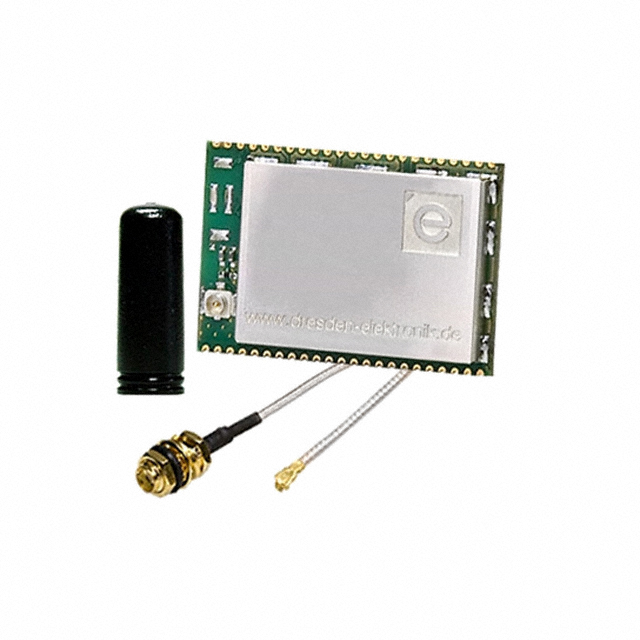

30126
ObsoleteDresden Elektronik
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
30126
ObsoleteDresden Elektronik
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30126 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 18 mA |
| Current - Transmitting | 18 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 2.4 dBm |
| Protocol | Zigbee®, 6LoWPAN |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -101 dBm |
| Serial Interfaces | I2C, JTAG, UART, SPI |
| Utilized IC / Part | CC1101 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.43 | |
Description
General part information
30126
802.15.4 6LoWPAN, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
