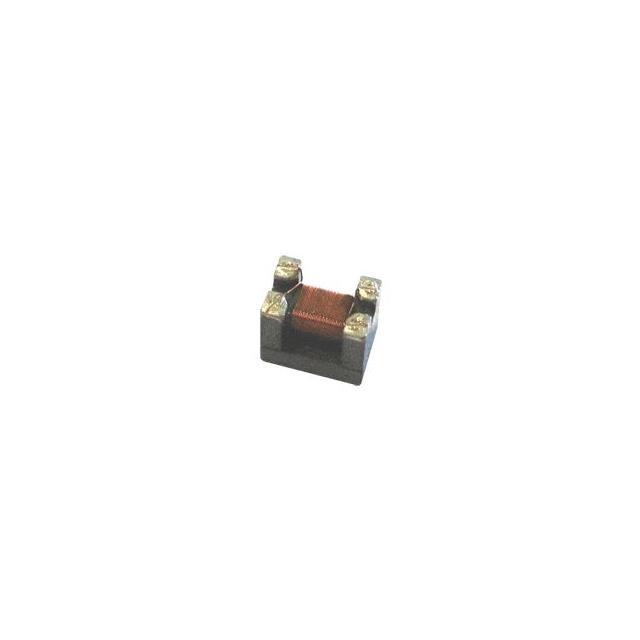

CTDLW43SF-510Y
ActiveCentral Technologies
CMC 51UH 200MA 2LN 2.8K OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
CTDLW43SF-510Y
ActiveCentral Technologies
CMC 51UH 200MA 2LN 2.8K OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDLW43SF-510Y |
|---|---|
| Current Rating (Max) [Max] | 200 mA |
| DC Resistance (DCR) (Max) [Max] | 1 Ohm |
| Height (Max) | 3 mm |
| Height (Max) [Max] [z] | 0.118 in |
| Impedance @ Frequency | 2.8 kOhms |
| Inductance @ Frequency | 51 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.78 | |
| 500 | $ 0.63 | |||
| 1000 | $ 0.49 | |||
Description
General part information
CTDLW43SF-510Y
51 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 10 MHz 200mA DCR 1Ohm
Documents
Technical documentation and resources
No documents available
