ZXSC100X8TA
ObsoleteDiodes Inc
SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZXSC100X8TA
ObsoleteDiodes Inc
SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXSC100X8TA |
|---|---|
| Clock Sync | False |
| Frequency - Switching | 200 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |

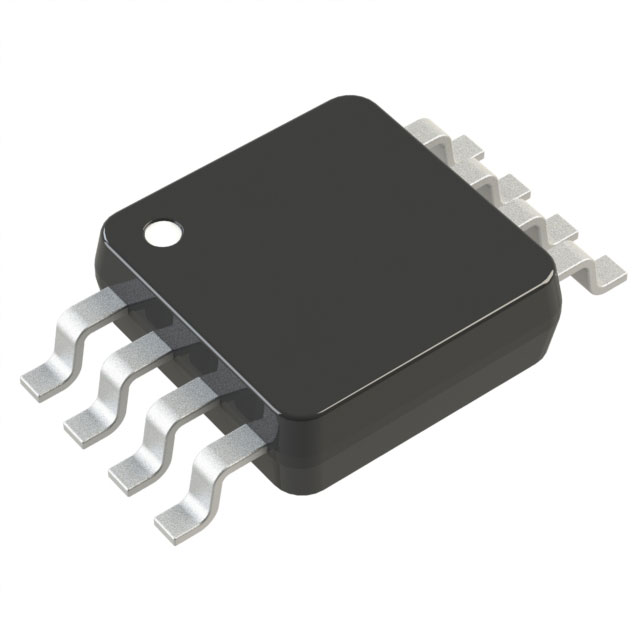

| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| Supplier Device Package | 8-MSOP |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 0.98 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZXSC100X8TA
Boost Regulator Positive Output Step-Up DC-DC Controller IC 8-MSOP
