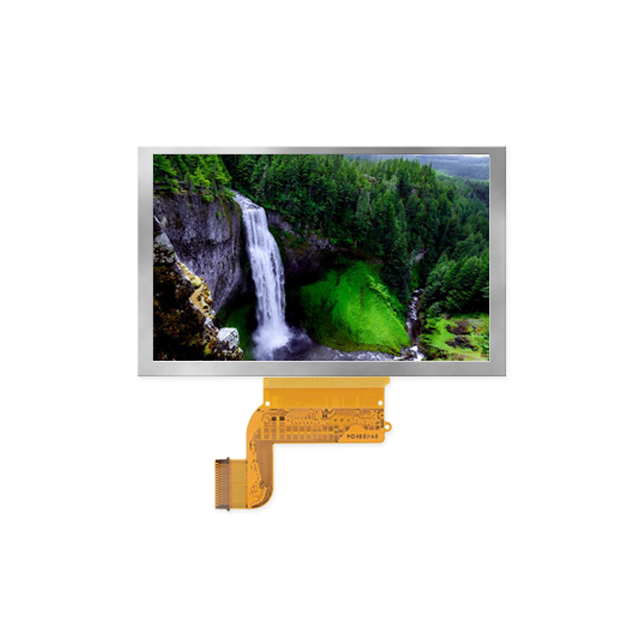

ST0700IF-RSLW-F
ActiveSantek
7.0" TFT LCD 800X480
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST0700IF-RSLW-F
ActiveSantek
7.0" TFT LCD 800X480
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST0700IF-RSLW-F |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.06 mm |
| Dot Pitch [y] | 0.19 mm |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [x] | 152.4 mm |
| Viewing Area [z] | 91.44 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.99 | |
Description
General part information
ST0700IF-RSLW-F
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 800 x 480
