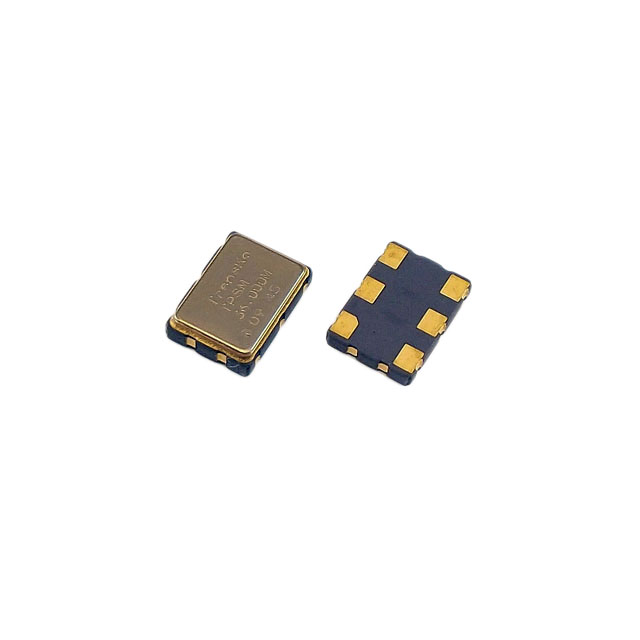

TPSM-P25HM33ST1-156.250M
ActiveTransko Electronics, Inc.
XTAL OSC XO 156.2500MHZ LVPECL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPSM-P25HM33ST1-156.250M
ActiveTransko Electronics, Inc.
XTAL OSC XO 156.2500MHZ LVPECL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPSM-P25HM33ST1-156.250M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 100 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output | LVPECL |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 100 | $ 10.50 | |
| 300 | $ 8.50 | |||
Description
General part information
TPSM-P25HM33ST1-156.250M
156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
