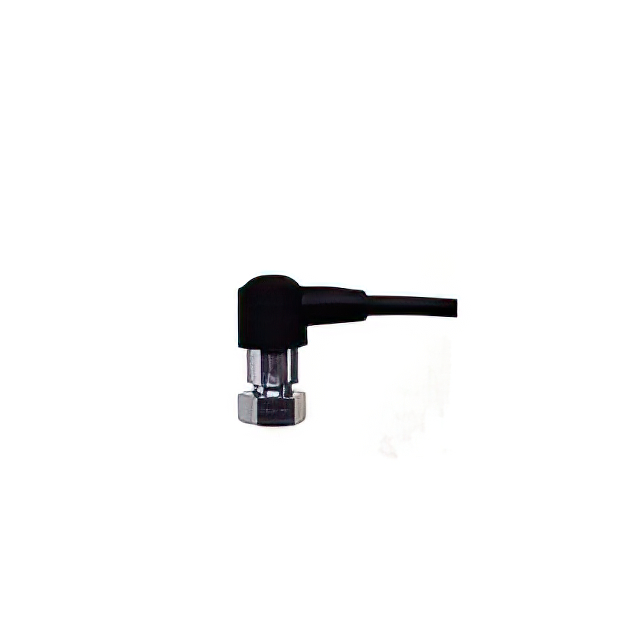

CMCP1100SR-20-00-00
ActiveSTI Vibration Monitoring
REVOLUTION ACCEL, SIDE, 20M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMCP1100SR-20-00-00
ActiveSTI Vibration Monitoring
REVOLUTION ACCEL, SIDE, 20M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMCP1100SR-20-00-00 |
|---|---|
| Acceleration Range [Max] | 50 g |
| Acceleration Range [Min] | -50 g |
| Axis [x] | X |
| Bandwidth [Max] | 10 kHz |
| Bandwidth [Min] | 0.32 Hz |
| Features | 20m Integral Cable, Side Exit |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -54 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 100 mV/g |
| Type | Analog |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 235.00 | |
Description
General part information
CMCP1100SR-20-00-00
Accelerometer X Axis ±50g 0.32Hz ~ 10kHz
