RC3216F106CS
ActiveSamsung Electro-Mechanics
RES 10M OHM 1% 1/4W 1206
Deep-Dive with AI
Search across all available documentation for this part.
RC3216F106CS
ActiveSamsung Electro-Mechanics
RES 10M OHM 1% 1/4W 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RC3216F106CS |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant |
| Height - Seated (Max) [Max] | 0.66 mm |
| Height - Seated (Max) [Max] | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 10 MOhms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RC3216F106CS

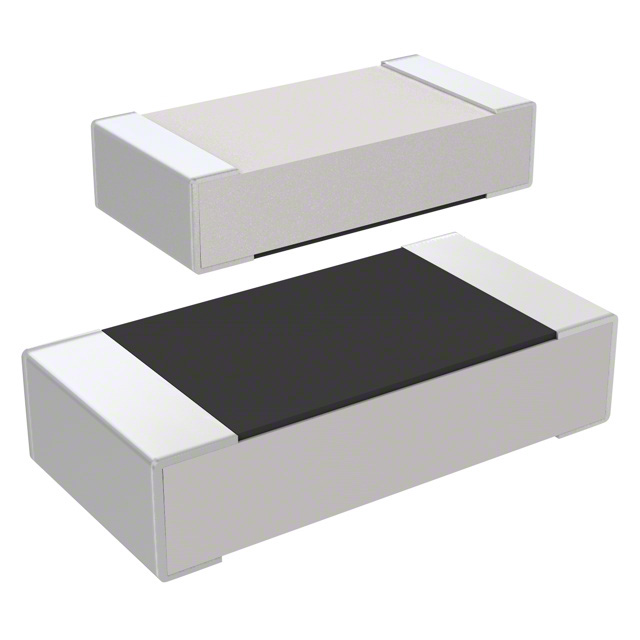

10 MOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
