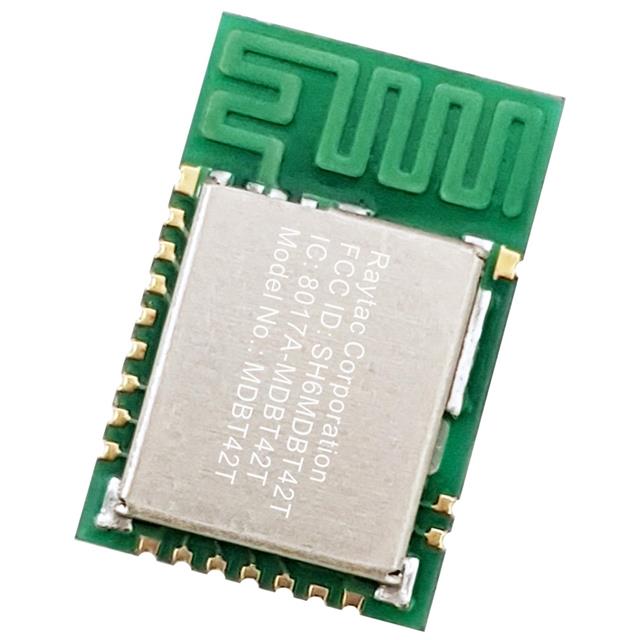

MDBT42T-P192K
ActiveRaytac
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDBT42T-P192K
ActiveRaytac
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT42T-P192K |
|---|---|
| Antenna Type | PCB Trace |
| Current - Transmitting [Max] | 30 mA |
| Current - Transmitting [Min] | 2.3 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 192 kB, 24 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee®, Bluetooth v5.4 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | UART, I2C, GPIO, USB, SPI |
| Utilized IC / Part | nRF52805 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.80 | |
Description
General part information
MDBT42T-P192K
802.15.4, Bluetooth Bluetooth v5.4, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
