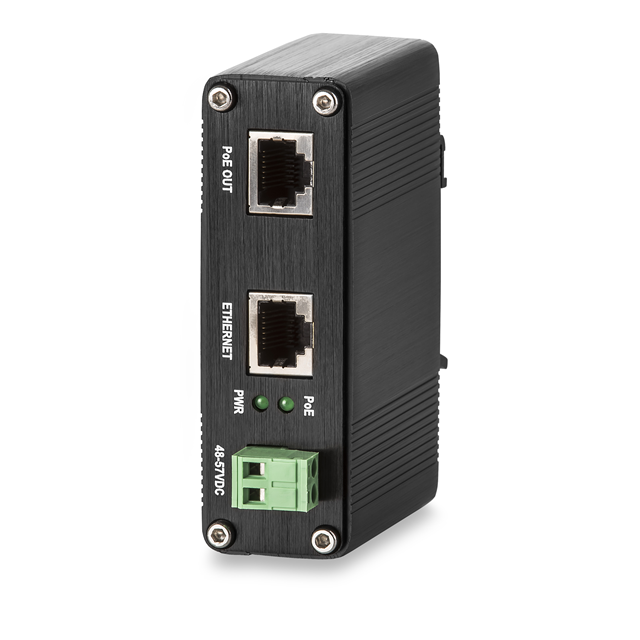

SIG FO-065-18POEINJZ
ActiveSignamax
INDUSTRIAL GIGABIT POE+ INJECTOR
Deep-Dive with AI
Search across all available documentation for this part.
SIG FO-065-18POEINJZ
ActiveSignamax
INDUSTRIAL GIGABIT POE+ INJECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIG FO-065-18POEINJZ |
|---|---|
| Compliance | IEEE802.3at, IEEE802.3af |
| Current - Output | 526.3 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Features | IP30 |
| Input Connector | RJ45 (Data), Terminal Block (Power) |
| Mounting Type | Wall Mount |
| Number of Ports | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 30 W |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 39.9 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Type | Passive Injector |
| Voltage - Input [Max] | 48 V |
| Voltage - Input [Min] | 12 V |
| Voltage - Output [Max] | 57 V |
| Voltage - Output [Min] | 46 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SIG FO-065-18POEINJZ
46V ~ 57V Power Over Ethernet (POE) 2 Port Passive Injector 10/100/1000 Mbps Data Rate
Documents
Technical documentation and resources
No documents available
