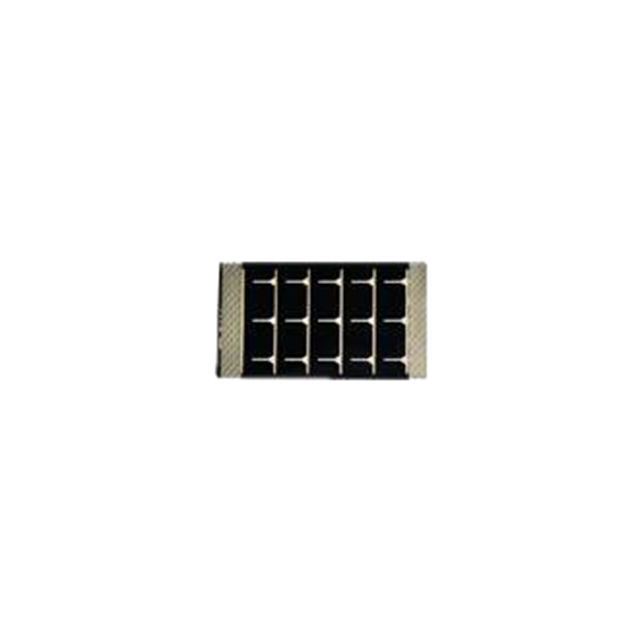

SP3-37
ActivePowerFilm Inc.
SOLAR CELL 70MW 4.6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP3-37
ActivePowerFilm Inc.
SOLAR CELL 70MW 4.6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP3-37 |
|---|---|
| Current - Short Circuit (Isc) | 28 mA |
| Current @ Pmpp | 22 mA |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 70 mW |
| Size / Dimension [x] | 2.52 in |
| Size / Dimension [x] | 64 mm |
| Size / Dimension [y] | 1.449 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.22 mm |
| Size / Dimension [z] | 0.009 " |
| Voltage - Open Circuit | 4.6 V |
| Voltage @ Pmpp | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.06 | |
| 10 | $ 4.29 | |||
| 50 | $ 3.83 | |||
| 100 | $ 3.64 | |||
| 300 | $ 3.41 | |||
| 500 | $ 3.24 | |||
Description
General part information
SP3-37
Solar Cell 70 mW 4.6 V
