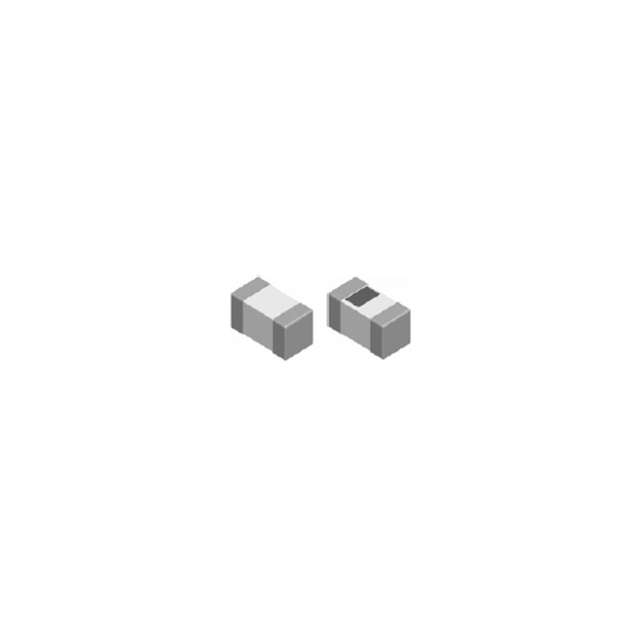

CL01JTQ10N-S
ActiveViking Technology
FIXED IND 10NH 160MA 800MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL01JTQ10N-S
ActiveViking Technology
FIXED IND 10NH 160MA 800MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL01JTQ10N-S |
|---|---|
| Current Rating (Amps) | 160 mA |
| DC Resistance (DCR) [Max] | 800 mOhm |
| Frequency - Self Resonant | 3.8 GHz |
| Height - Seated (Max) [Max] | 0.014 in |
| Height - Seated (Max) [Max] | 0.35 mm |
| Inductance | 10 nH |
| Inductance Frequency - Test | 500 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Q @ Freq | 13, 500 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.6 mm |
| Size / Dimension [x] | 0.024 " |
| Size / Dimension [y] | 0.3 mm |
| Size / Dimension [y] | 0.012 " |
| Supplier Device Package | 0201 |
| Tolerance | 5 % |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 15000 | $ 0.00 | |
Description
General part information
CL01JTQ10N-S
10 nH Unshielded Multilayer Inductor 160 mA 800mOhm Max 0201 (0603 Metric)
