NDMA154100
ActiveAmphenol ICC (Commercial Products)

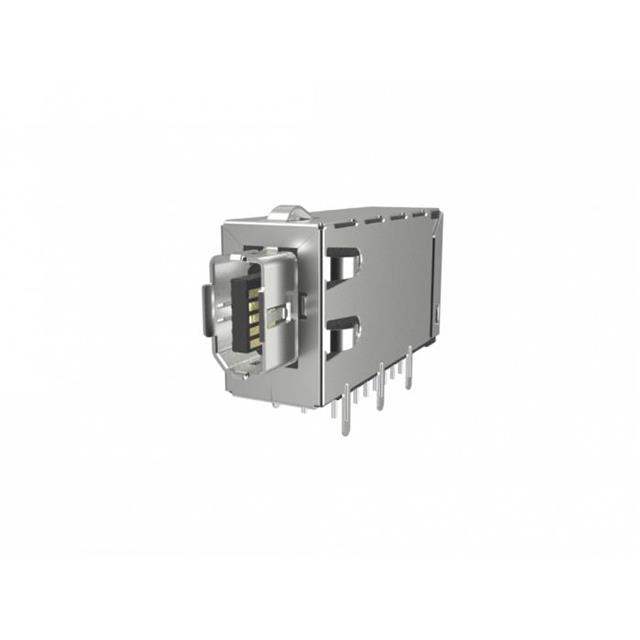

IX MAG RECEPTACLE, TYPE A RA FLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDMA154100
ActiveAmphenol ICC (Commercial Products)
IX MAG RECEPTACLE, TYPE A RA FLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NDMA154100 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Features | Board Guide, Shielded, Solder Retention |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Positions | 10 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.59 | |
| 10 | $ 12.05 | |||
| 25 | $ 11.58 | |||
| 78 | $ 11.12 | |||
| 156 | $ 10.50 | |||
| 234 | $ 9.58 | |||
| 468 | $ 8.96 | |||
| 1014 | $ 8.22 | |||
Description
General part information
NDMA154100
10 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle; Through Hole
