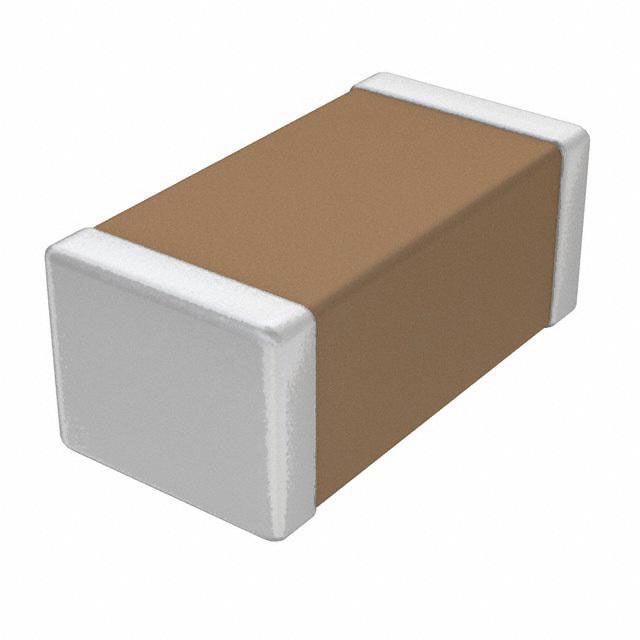

GMC10CG561G50NT
ActiveCal-Chip Electronics, Inc.
CAP CER 560PF 50V C0G/NP0 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMC10CG561G50NT
ActiveCal-Chip Electronics, Inc.
CAP CER 560PF 50V C0G/NP0 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMC10CG561G50NT |
|---|---|
| Applications | General Purpose |
| Capacitance | 560 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] | 0.9 mm |
| Thickness (Max) [Max] | 0.035 in |
| Tolerance | 2 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.02 | |
| 32000 | $ 0.02 | |||
| 100000 | $ 0.02 | |||
Description
General part information
GMC10CG561G50NT
560 pF ±2% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
