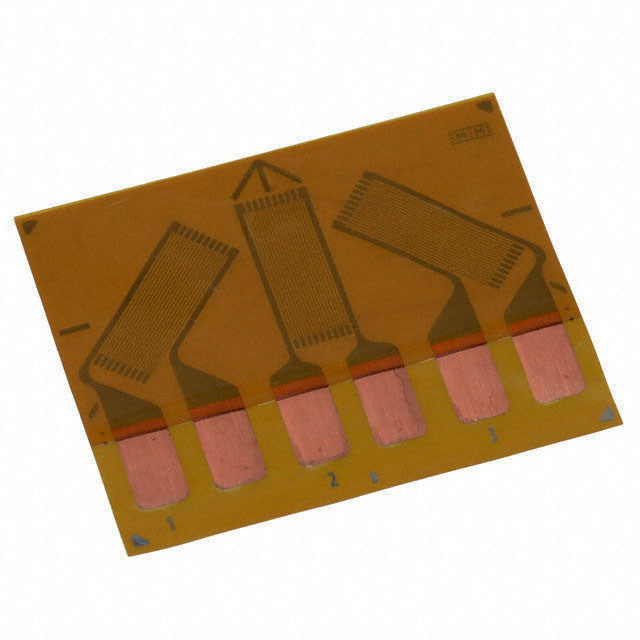

MMF003216
ObsoleteMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 350 OHM RECT 1=5PC
Deep-Dive with AI
Search across all available documentation for this part.
MMF003216
ObsoleteMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 350 OHM RECT 1=5PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF003216 |
|---|---|
| Length - Active | 6.35 mm |
| Length - Active | 0.25 " |
| Length - Overall | 16.5 mm |
| Length - Overall [x] | 0.65 " |
| Length - Overall Pattern | 12.7 mm |
| Length - Overall Pattern | 0.5 in |
| Operating Temperature [Max] [custom] | 175 °C |
| Operating Temperature [Max] [custom] | 350 °F |
| Operating Temperature [Min] [custom] | -75 °C |
| Operating Temperature [Min] [custom] | -100 °F |
| Pattern Type | Rectangular Rosette |
| Resistance | 350 Ohms |
| Resistance Tolerance | 0.4 % |
| Width - Active | 3.05 mm |
| Width - Active | 0.12 in |
| Width - Overall [y] | 0.8 in |
| Width - Overall [y] | 20.3 mm |
| Width - Overall Pattern [y] | 19.3 mm |
| Width - Overall Pattern [y] | 0.76 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MMF003216
Rectangular Rosette Strain Gauge ±5% 0.250" (6.35mm) per section 0.120" (3.05mm) per section
Documents
Technical documentation and resources
No documents available
