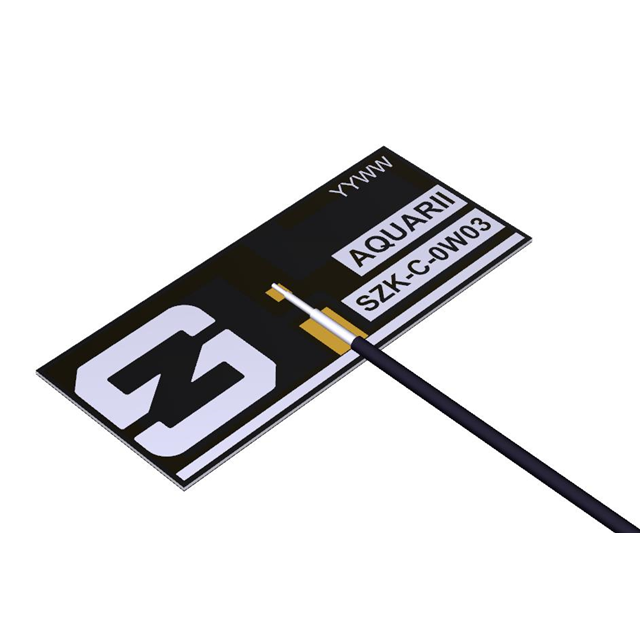

SZK-C-0W03
ActiveSynzen
WI-FI ANT 2.4-5GHZ FLAT PATCH IP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZK-C-0W03
ActiveSynzen
WI-FI ANT 2.4-5GHZ FLAT PATCH IP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZK-C-0W03 |
|---|---|
| Applications | WLAN |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 6 GHz, 2.5 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 5.5 dBi, 1.85 dBi |
| Number of Bands | 2 |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 2.87 | |
| 20 | $ 2.70 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.20 | |||
| 500 | $ 1.92 | |||
| 1000 | $ 1.65 | |||
| 2000 | $ 1.58 | |||
| 5000 | $ 1.45 | |||
Description
General part information
SZK-C-0W03
RF ANTENNA WLAN Flat Patch Adhesive
