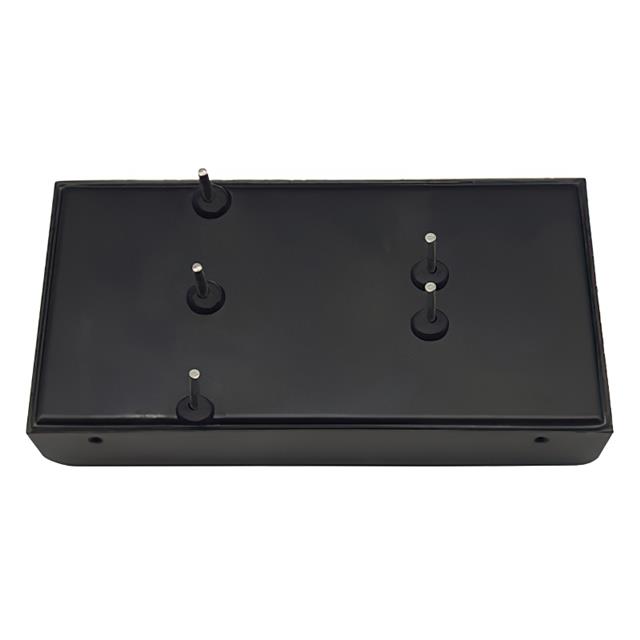

ATMV24VPN100V40MA2
ActiveAnalog Technologies, Inc.
MINI ISOLATED 4W DC-DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATMV24VPN100V40MA2
ActiveAnalog Technologies, Inc.
MINI ISOLATED 4W DC-DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATMV24VPN100V40MA2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 40 mA |
| Current - Output (Max) | 40 mA |
| Efficiency | 77 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 10.5 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 100 V |
| Voltage - Output 2 | -100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.66 | |
| 10 | $ 123.67 | |||
| 25 | $ 119.68 | |||
| 50 | $ 109.71 | |||
Description
General part information
ATMV24VPN100V40MA2
Isolated Module DC DC Converter 2 Output 100V -100V 40mA, 40mA 18V - 36V Input
