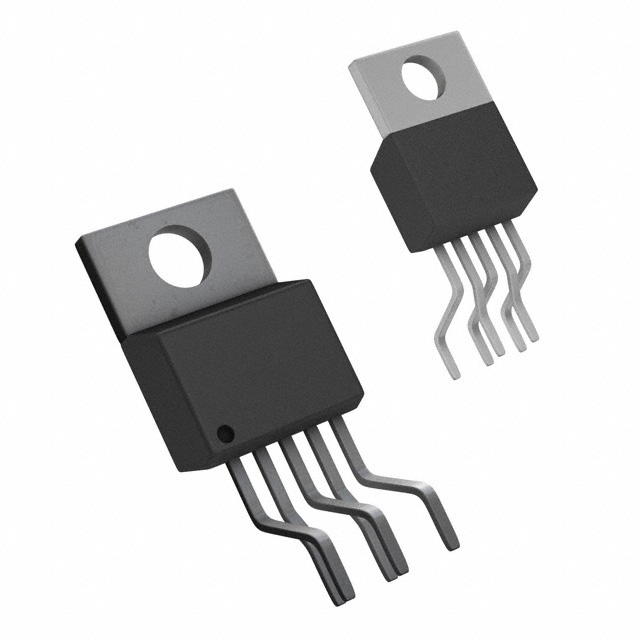

LP3876ET-2.5
ObsoleteTexas Instruments
IC REG LINEAR 2.5V 3A TO220-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP3876ET-2.5
ObsoleteTexas Instruments
IC REG LINEAR 2.5V 3A TO220-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP3876ET-2.5 |
|---|---|
| Control Features | Enable |
| Current - Output | 3 A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) [Max] | 15 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-5 Formed Leads |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| Supplier Device Package | TO-220-5 |
| Voltage - Input (Max) [Max] | 7 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
| Voltage Dropout (Max) [Max] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LP3876ET-2.5
Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-220-5
