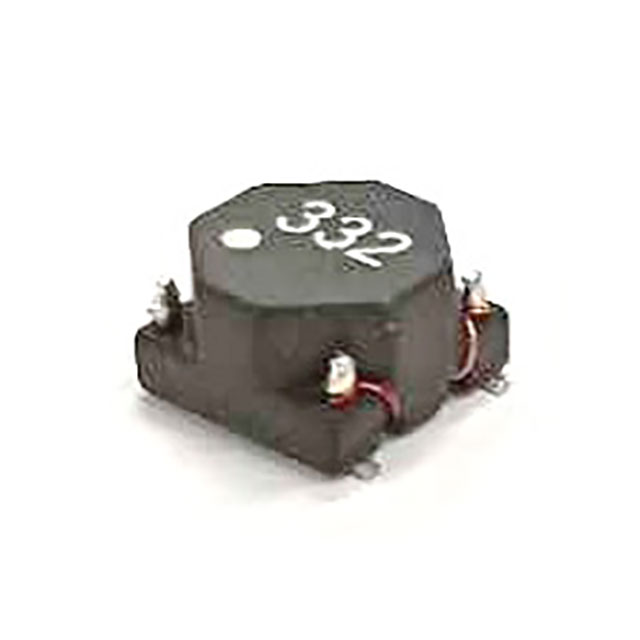

CM633SG332N
ActiveMentech Technology USA Inc.
CMC 3.3MH 520MA 2LN SMD
Deep-Dive with AI
Search across all available documentation for this part.
CM633SG332N
ActiveMentech Technology USA Inc.
CMC 3.3MH 520MA 2LN SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CM633SG332N |
|---|---|
| Current Rating (Max) [Max] | 520 mA |
| DC Resistance (DCR) (Max) | 360 mOhm |
| Height (Max) [Max] [z] | 0.22 in |
| Height (Max) [Max] [z] | 5.6 mm |
| Inductance @ Frequency | 3.3 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.374 in |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [y] | 8.9 mm |
| Size / Dimension [y] | 0.35 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 2.80 | |
| 10 | $ 2.24 | |||
| 100 | $ 1.40 | |||
| 900 | $ 0.84 | |||
| 2700 | $ 0.70 | |||
| 4500 | $ 0.56 | |||
| 9000 | $ 0.42 | |||
Description
General part information
CM633SG332N
3.3 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 520mA DCR 360mOhm
Documents
Technical documentation and resources
No documents available
