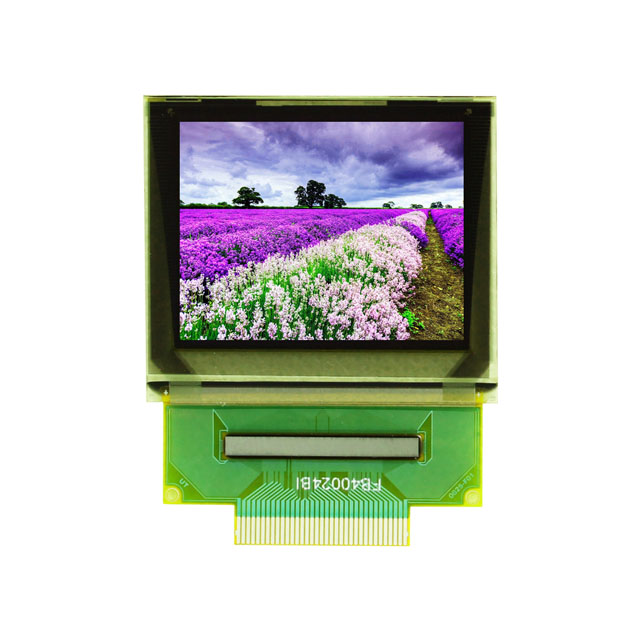

DLC0145BNOF
ActiveDLC Display Co.,Ltd
1.45" PMOLED 160XRGBX128 COLOR
Deep-Dive with AI
Search across all available documentation for this part.
DLC0145BNOF
ActiveDLC Display Co.,Ltd
1.45" PMOLED 160XRGBX128 COLOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0145BNOF |
|---|---|
| Controller Type | SEPS525-F00 |
| Diagonal Screen Size | 1.45 in |
| Diagonal Screen Size | 36.83 mm |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.18 mm |
| Dot Pitch [y] | 0.06 mm |
| Dot Pixels [x] | 160 |
| Dot Pixels [y] | 128 |
| Graphics Color | Green, Red, Blue |
| Interface | 6-Bit/8-Bit/9-Bit (RGB), SPI, Parallel |
| Viewing Area [x] | 30.78 mm |
| Viewing Area [y] | 25.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 420 | $ 38.92 | |
Description
General part information
DLC0145BNOF
Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix Parallel, 6-Bit/8-Bit/9-Bit (RGB), SPI 1.45" (36.83mm) 160 x 128
Documents
Technical documentation and resources
No documents available
