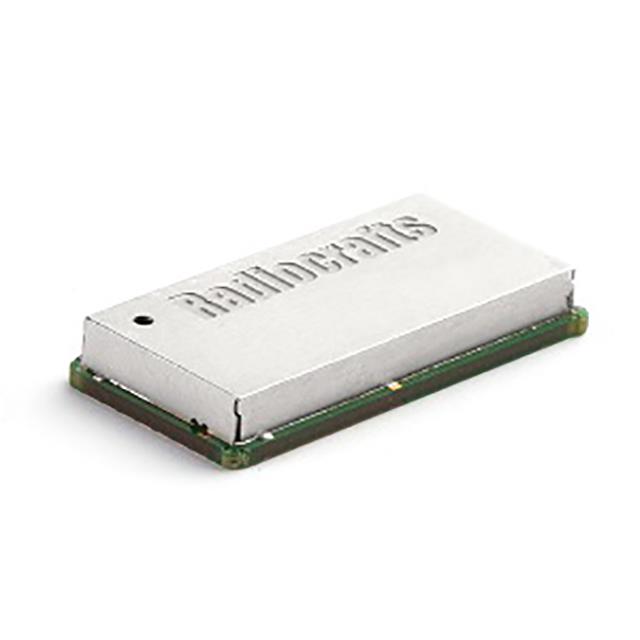

RC1880HPCF-GPR
ActiveRadiocrafts AS
RF TXRX MOD 802.15.4 ISM<1GHZSMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC1880HPCF-GPR
ActiveRadiocrafts AS
RF TXRX MOD 802.15.4 ISM<1GHZSMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC1880HPCF-GPR |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 12.5 mA |
| Current - Transmitting | 350 mA |
| Data Rate | 50 kbps |
| Frequency [Max] | 870 MHz |
| Frequency [Min] | 865 MHz |
| Modulation | 2FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 42-SMD Module |
| Power - Output | 27 dBm |
| Protocol | RIIoT |
| RF Family/Standard | 802.15.4, General ISM < 1GHz |
| Sensitivity | -111 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 24.21 | |
| 10 | $ 22.34 | |||
| 25 | $ 20.48 | |||
| 100 | $ 18.93 | |||
| 250 | $ 18.00 | |||
| Digi-Reel® | 1 | $ 24.21 | ||
| 10 | $ 22.34 | |||
| 25 | $ 20.48 | |||
| 100 | $ 18.93 | |||
| 250 | $ 18.00 | |||
| Tape & Reel (TR) | 500 | $ 16.76 | ||
Description
General part information
RC1880HPCF-GPR
802.15.4, General ISM < 1GHz RIIoT Transceiver Module 865MHz ~ 870MHz Antenna Not Included Surface Mount
