LLP502-3C3C3J3J2C-BLK-36

Active

Mobile Mark Antenna Solutions

5-CABLE 2XLTE/4G 2XWIFI GPS MOBI

Search across all available documentation for this part.

Active

Mobile Mark Antenna Solutions

5-CABLE 2XLTE/4G 2XWIFI GPS MOBI

Technical Specifications

Parameters and characteristics for this part

Specification	LLP502-3C3C3J3J2C-BLK-36

Antenna Type	Module
Applications	CBRS, LTE, Galileo, 4G, 802.11ax, Wi-Fi, QZSS, GNSS, Beidou, GPS, GLONASS
Features	LNA
Features [x]	914.4 mm
Frequency Group	Wide Band
Frequency Range [Max]	700 MHz, 6 GHz, 730 MHz, 960 MHz, 800 MHz, 2.5 GHz, 3.7 GHz
Frequency Range [Min]	1.71 GHz, 730 MHz, 800 MHz, 2.4 GHz, 4.9 GHz, 700 MHz, 694 MHz
Gain	4 dBi, 3 dBi, 2 dBic, 1 dBi, 5 dBi
Height (Max) [Max]	1.25 in
Height (Max) [Max]	31.75 mm
Ingress Protection	IP69K
Mounting Type	Through Hole
Number of Bands	10
Power - Max [Max]	10 W
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	2, 2.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 189.75

General part information

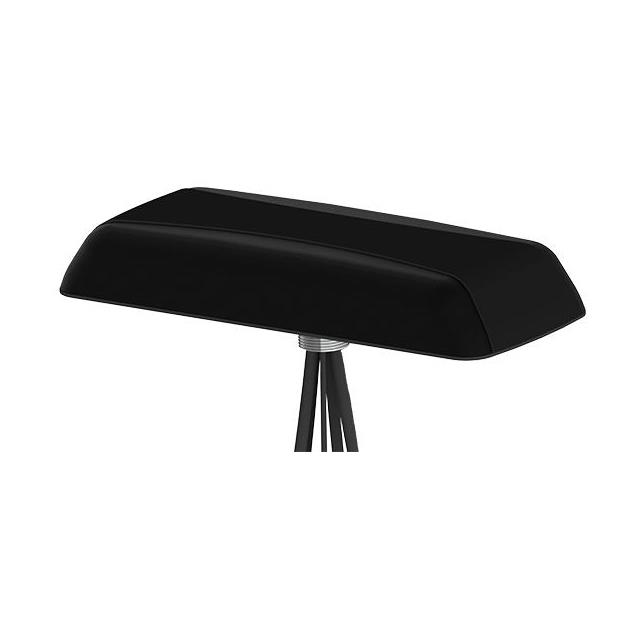

RF ANTENNA 4G, 802.11ax, BeiDou, CBRS, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi Module SMA Male Through Hole
