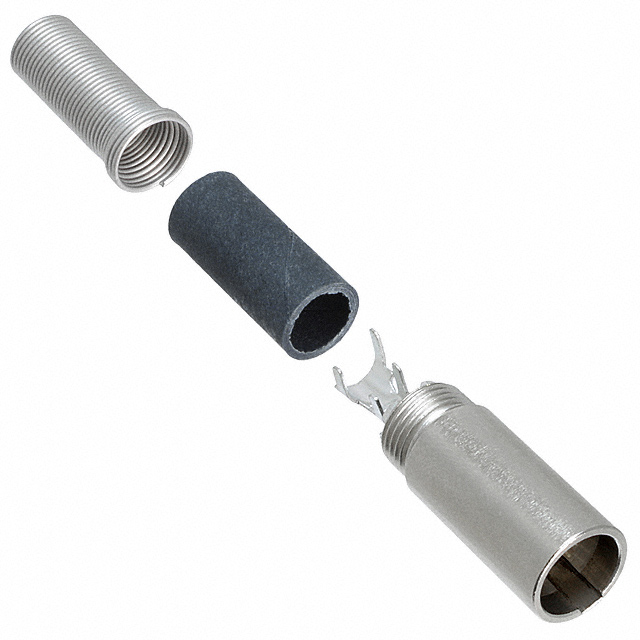

TA8MSH
ActiveSwitchcraft Inc.
CONN RCPT MALE MINI XLR 8P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA8MSH
ActiveSwitchcraft Inc.
CONN RCPT MALE MINI XLR 8P SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA8MSH |
|---|---|
| Applications | Audio, Medical |
| Backshell Material, Plating | Copper Alloy, Nickel |
| Cable Opening [custom] | 7.37 mm |
| Cable Opening [custom] | 0.29 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Latch Lock |
| Features | Ground, Cable Clamp, Backshell |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | Mini XLR |
| Shielding | Shielded |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.25 | |
| 10 | $ 11.75 | |||
| 25 | $ 10.79 | |||
Description
General part information
TA8MSH
8 Position Circular Connector Receptacle, Male Pins Solder Cup
