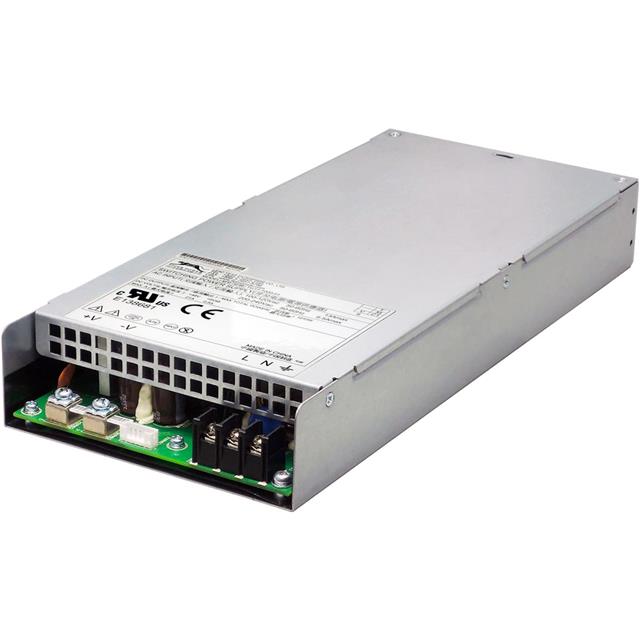

TG17-1000-01
ActiveLead Year Enterprise
AC-DC SWTCHNG PWR SPLY 48V 1010W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG17-1000-01
ActiveLead Year Enterprise
AC-DC SWTCHNG PWR SPLY 48V 1010W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG17-1000-01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CB, cUL |
| Efficiency | 88 % |
| Features | 0.5 A, 5 V |
| Mounting Type | Chassis Mount |
| Power (Watts) | 1010 W |
| Size / Dimension [x] | 11.61 " |
| Size / Dimension [x] | 295 mm |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 582.50 | |
| 5 | $ 570.00 | |||
| 10 | $ 560.50 | |||
| 25 | $ 549.50 | |||
Description
General part information
TG17-1000-01
Enclosed AC DC Converters Output 48V 90 ~ 264 VAC Input
