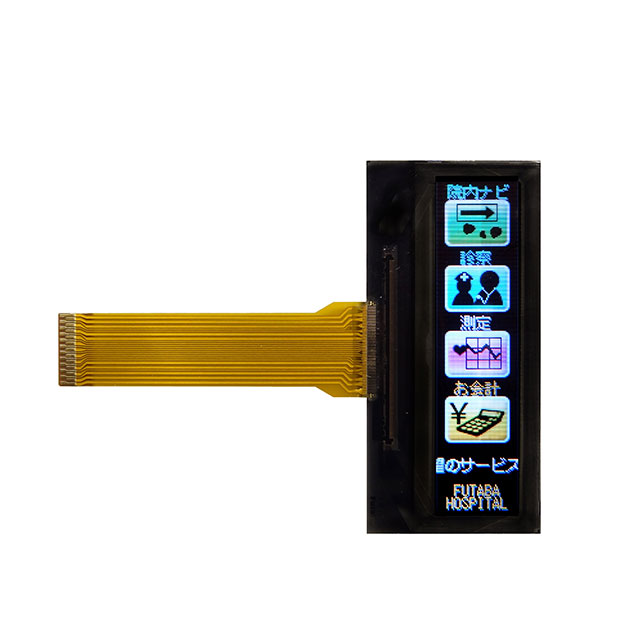

ELF1311AA
ObsoleteFutaba Corporation
GRAPHIC DISPLAY OLED RGB 1.3"
Deep-Dive with AI
Search across all available documentation for this part.
ELF1311AA
ObsoleteFutaba Corporation
GRAPHIC DISPLAY OLED RGB 1.3"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ELF1311AA |
|---|---|
| Controller Type | LDT, LD7226 |
| Diagonal Screen Size | 33.02 mm |
| Diagonal Screen Size | 1.3 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.12 mm |
| Dot Pitch [y] | 0.12 mm |
| Dot Pixels [x] | 256 |
| Dot Pixels [y] | 64 |
| Graphics Color | Green, Red, Blue |
| Interface | I2C, SPI |
| Viewing Area [x] | 31.47 mm |
| Viewing Area [y] | 7.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ELF1311AA
Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix I2C, SPI 1.3" (33.02mm) 256 x 64
Documents
Technical documentation and resources
No documents available
