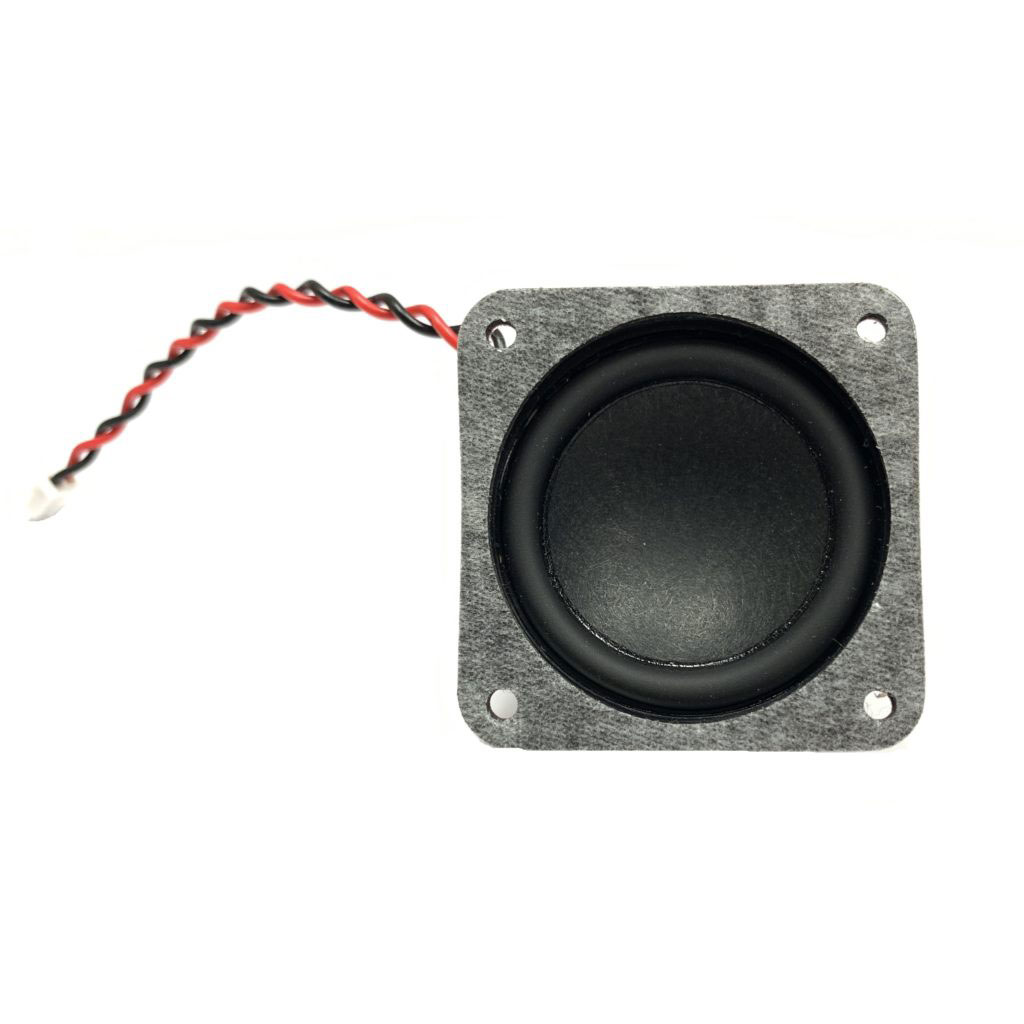

D4242008NR10WER
ActiveStetron
LOUDSPEAKER 42X42 MM, 8OHMS 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D4242008NR10WER
ActiveStetron
LOUDSPEAKER 42X42 MM, 8OHMS 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D4242008NR10WER |
|---|---|
| Distortion Rating | 8 % |
| Efficiency - dBA | 81 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 160 Hz |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 160 Hz |
| Height - Seated (Max) [Max] [z] | 1.051 " |
| Height - Seated (Max) [Max] [z] | 26.7 mm |
| Impedance | 8 Ohms |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Port Location | Top |
| Power - Max [Max] | 6 W |
| Power - Rated | 5 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [y] | 1.654 " |
| Size / Dimension [y] | 42 mm |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.63 | |
| 10 | $ 8.03 | |||
| 50 | $ 7.55 | |||
Description
General part information
D4242008NR10WER
8 Ohms General Purpose Speaker 5 W 160 Hz ~ 15 kHz Top Round, Square Frame
